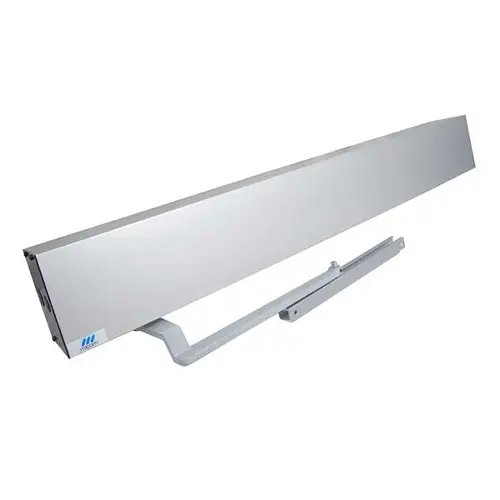

Micom SW800-SG-C-2-AP-RH-39 SW800 Smart Swing Door Operator Silver

SW800 Smart SwingSingle Door Operator

Micom Americas Inc. Smart Swing 3® Low Energy Swing Door Operator, a carefully engineered automatic swing door operator is non-handed and ideal for varied applications, providing multifunction use and service across a wide range of applications.A fully automatic and low energy swing door operator in one. Designed to offer long term durability and continuous barrier free access for all.

Features:

• Adjustable Opening Speed

• Adjustable Back Check Speed & Back Check Position

• Adjustable Closing Speed

• Adjustable Latching Speed & Latching Position

• Adjustable Hold-Open Time between 1-60 seconds

• Reverse on Obstruction

• Optional Push & Go Built in with Separate Adjustable Hold-Open Time

• Fully Adjustable Electronic Door Stop

• Power to Activate Electric Lock Adjustable 12/24 Volts DC

• Electric Lock Delay to Prevent Door Binding

• Fully Adjustable Power Close

• Wind Control Built in Adjustable Back check

Specifications: Handing:

• Non-handed

Header Size:

• 5 1/2" high x 4 1/2" deep(140mm x 114mm)

Operating Temperature:

• -10F to +140F

Max Door Weight:

• 700 lbs (318skg) per leaf

Operator Dimensions:

• 5 1/2" (140 mm) x 4 1/2" (115mm)

Operator Net Weight:

• 16kg Approx.

Power Supply:

• 90V ~ 250V AC, 50/60Hz

Consumption:

• 100W Max

Motor:

• 1/8 hp, 24VDC, 3A max

Finishes:

• Silver

• Black
