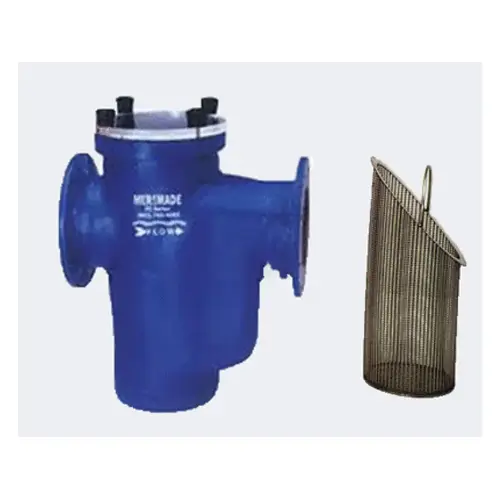

8" Fo Series Standard Strainer With Stainless Steel Basket

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Mer-Made Filter 8X8FO 8" Fo Series Standard Strainer With Stainless Steel Basket

Item #: 8X8FO by MER-MADE FILTER OF SC

See reviews See reviews

$4,048.21

/each
SAVE UP TO 404.82

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Strainer shall be constructed completely of non-corrodible materials
  • Strainer is to be built with an outlet structure to enlarge the opening in the basket chamber
  • Supply a V-wire 316 stainless steel basket with 3/16 Inch square openings and 62% open area. Supply one spare basket for change-out
  • Liner shall be constructed of one layer of resin-rich Cveil, followed by two layers of 11/2 oz fiber glass mat
  • Structure to be four layers of 11/2 oz glass mat, impregnated with isophthalic polyester resin
  • Inlet and outlet to be flanged connections, flange to be 3/4 Inch thick drilled to 150# ANSI standard drilling pattern
  • Lid to be manufactured of clear acrylic to allow unobstructed visual inspection of basket
  • Stainless steel toggle bolts are to be built into the top of the strainer body
  • Fiberglass knobs on these bolts clamp the acrylic cover tightly
  • The clear lid shall be grooved to allow it to swing open after dropping one toggle
  • Lid shall be sealed with an ethylene propylene o-ring

ConnectionType

Flange

Material

Fiberglass Body, Stainless Steel Basket

Item

Strainer

Length

23-1/2 Inch

Type

Standard

Department

PUMPS

Brand

Mer-Made Filter


Mer-Made Filter 8"-FO-SS FO Series Standard Strainer; 8 Inch, Fiberglass Body, Stainless Steel Basket
