These CRL Shallow Depth Floor Mounted Door Closers are preferred for many types of installations because they only require a shallow 1-9/16" (40 mm) cut-out in the floor. This is especially important on floors above the ground floor. The shallow cut-out leaves enough remaining floor under the Door Closer to support the door weight. The Door Closer has separate valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Live Chat
24/7 Help Sign in for the Best Experience
Don't have an Account? Create an Account
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

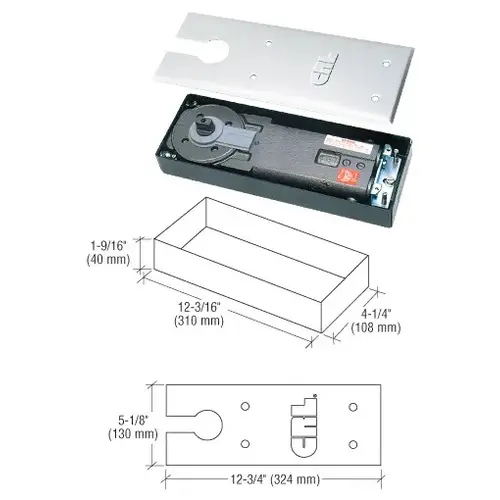

CRL CRL8370 Medium Duty 105 degree Hold Open Low Profile Floor Mounted Closer
Item #: CRL8370 by CR Laurence
See reviews See
reviews
In Stock
$131.90
/eachSAVE UP TO 13.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 264 Lbs. Capacity, 42" Doors
- 264 Lb. Capacity, 42" Doors
- Low Profile 1-9/16" (40 mm) Depth
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
Spring Size
Medium
Type
105º Hold Open
Hold Open
105°
UL Listed
Yes
Includes
CRL8372, CRL9040S3
Door Height
96
Closer Type
Floor Closer
Independent Closing and Latching Valves
Yes
Recommended Door Type
Aluminum, Hollow Metal
Not Recommended for Exterior Application
Yes
Maximum Weight Center Hung
264 Pounds
Closer Body With Box
Yes
Interchangeable Spindles
Yes
Maximum Door Width - Exterior
48 Inches
Replacement Parts
CRL8372, CRL9040S4
Auxiliary Stop Recommended
Yes
Spindle Included
Yes
Maximum Door Width - Interior
54 Inches
Body Length
12-3/16
Body Height
1-9/16
Body Width
4-1/4
Handing
Double Acting
These CRL Shallow Depth Floor Mounted Door Closers are preferred for many types of installations because they only require a shallow 1-9/16" (40 mm) cut-out in the floor. This is especially important on floors above the ground floor. The shallow cut-out leaves enough remaining floor under the Door Closer to support the door weight. The Door Closer has separate valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
.
