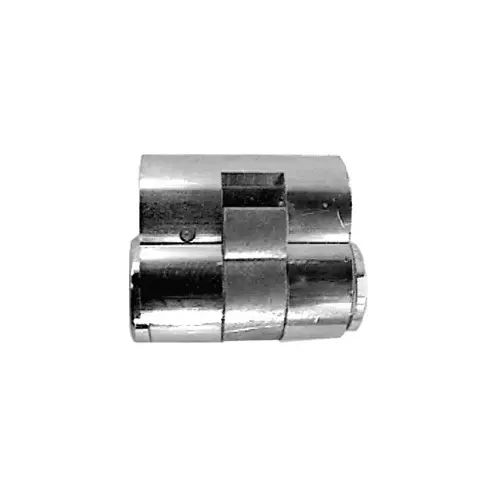

Medeco Security Locks 320201-T-26-DLS M3 Medeco LFIC Core, 6 Pin, DL Keyway, Sub-Assembled, Satin Chrome 26
Item #: 320201-T-26-DLS by Medeco High Security Locks
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
148458
Keyway
Medeco DL
Cylinder Type
6-Pin, Medeco LFIC Core
Finish code
26
Restricted Keyway
No
Cylinder Assembly
SUB - Sub-Assembled, with Sidebar, No Tumbler Pins
Product Overview
Medeco Large Format Interchangeable Cores
Medeco Large Format Interchangeable Core (LFIC) cylinders are designed so that cores can quickly and easily be changed by non-technical personnel by using a special control key. Locks can, in effect, be "rekeyed" without having a working knowledge of the lock or without having to take the lock apart.
Medeco LFIC cylinders are available in a variety of different sizes, formats and security levels. Cores are available to fit into rim and mortise cylinders, key-in-knob locks, padlocks and bored auxiliary deadlatches and deadbolts. The Medeco 32 Series LFIC's are UL437 listed and provide drill and pick resistance and those that incorporate the Medeco³ design offer utility patented control.
The Medeco 31 Series is designed to retrofit the Yale LFICmortise housings, rim, key-in-knob and padlock bodies and the 32 Series fits Medeco rim and mortise cylinder housings, padlock bodies, Maxum deadbolts, Embassy knob and lever cylindrical locksets, and Simplex Unican.
Technical Information:
Applications:
Patented Key Control
Protects against unauthorized duplication of your keys.
Uses Existing Hardware
Medeco offers the largest selection of retrofit Large Format Interchangeable Cores (LFIC) that reduce cost by eliminating the need to replace your existing hardware.
Quickly Change Cores
Provides quick and easy cylinder changes in the event keys are lost or stolen.
Protection From Physical Attack
Medeco³ LFIC cylinders are UL 437 listed and use hardened stainless steel inserts in the cylinder face to provide drill and pick resistance resistance.
Special Angle Cut Keys
Requires a special key cutting machine and access to Medeco specific blanks, available in a variety of restrictions to support every need.
Picking and Bumping Protection
Medeco³ cylinders use a sidebar that prevent the key from rotating until it is elevated, rotated and aligned in the correct position. This feature protects against bumping and picking attacks.
Finishes
