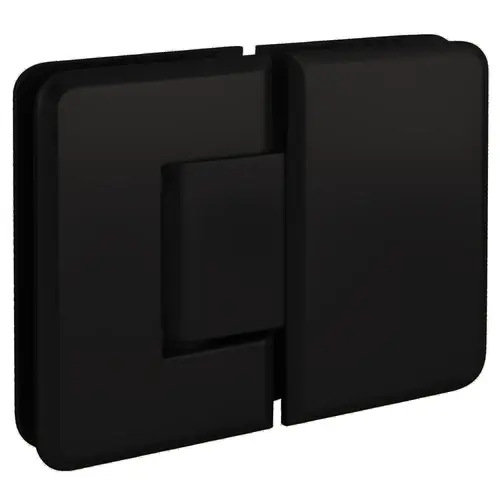

CRL P1N180MBL Matte Black Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
Item #: P1N180MBL by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Self-Centering with Reversible 5 Degree Pivot Pin
- Three Year Warranty
- 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
- Use Monolithic Tempered Glass
Height
3-1/2
Width
2-3/16" (56 mm)
Finish
Matte Black
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Matte Black
Series
Pinnacle
Width - Sidelite Portion (Inches)
2-3/16
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges (Inches)
28
Maximum Door Width - 3 Hinges (Inches)
32
Maximum Door Weight - 3 Hinges (Pounds)
120
Maximum Door Weight - 2 Hinges (Pounds)
80
Width - Door Portion (Inches)
2-3/16
Glass To Glass Angle (Degrees)
180
Mounting Style
Glass To Glass
Height (Inches)
3-1/2
Max Dr Weight - 3 Hinges (Lbs)
120
Width - Sidelite Portion (Inch
2-3/16
Max Dr Weight - 2 Hinges (Lbs)
80
Width (Inches)
2-3/16
Max Dr Width - 3 Hinges (Inch)
32
Max Dr Width - 2 Hinges (Inch)
28
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Width - Sidelite Portion
2-3/16
Width - Door Portion
2-3/16 in. (56 mm)
