Matte Black Geneva Series Wall Mount Offset Back Plate Hinge

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

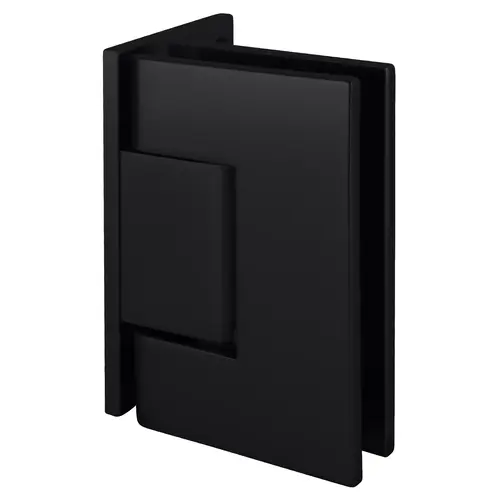

CRL GEN044MBL Matte Black Geneva Series Wall Mount Offset Back Plate Hinge

Item #: GEN044MBL by CR Laurence

11 reviews
In Stock

$59.27

/each
SAVE UP TO 5.93

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Use Monolithic Tempered Glass
  • Wall Mount Offset Back Plate (Factory Set for Standard Closing Position)
  • Wall Mount Offset Back Plate Model (Factory Set for Standard Closing Position)

Height

3-1/2

Depth

2-3/16" (56 mm)

Width

2-3/16

Finish

Matte Black

Back Plate

Offset

Glazing Thickness

5/16 To 1/2

Adjustable

No

Finish/Color

Matte Black

Series

Geneva

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Width - 2 Hinges (Inches)

28

Maximum Door Width - 3 Hinges (Inches)

32

Maximum Door Weight - 3 Hinges (Pounds)

120

Maximum Door Weight - 2 Hinges (Pounds)

80

Mounting Type

Wall Mount

Material

Brass

Mounting Style

Wall mount

Height (Inches)

3-1/2

Max Dr Weight - 3 Hinges (Lbs)

120

Max Dr Weight - 2 Hinges (Lbs)

80

Width (Inches)

2-3/16

Max Dr Width - 3 Hinges (Inch)

32

Max Dr Width - 2 Hinges (Inch)

28

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32
