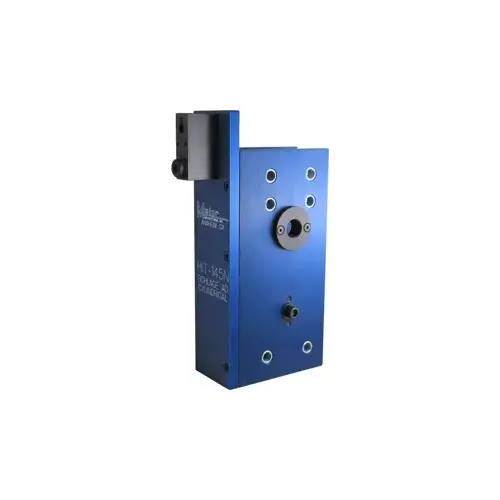

Major Mfg HIT-145N Jig for Schlage AD Cylindrical
Item #: HIT-145N by MAJOR MFG.
See reviewsSee reviews
HURRY! Low in stock
$672.59
/eachSAVE UP TO 67.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
147807
Type
Schlage AD Cylindrical Locks
Installation Tools
Templates
Product Overview
Major Manufacturing Drill Guide for Schlage AD Cylindrical Lock
HIT-145
Accurately install Schlage AD cylindrical series locks using the HIT-145 Drill Guide. This unit, thru-bolts to door, using the existing 2-1/8” crossbore for alignment. All required mounting and function holes including the DPS switch in the door edge are located with hardened drill bushings.
There are drill bushings on both sides of template, to allow drilling from either side of door. Standard drill guide will accommodate doors up to 2” thick with a 2-3/4” Backset. DPS drill guide will center on a standard 1-3/4” door.
