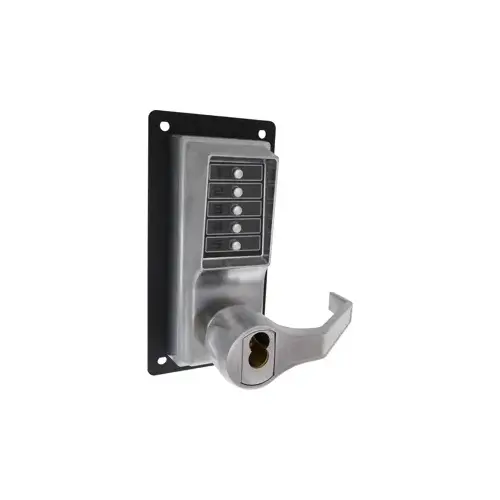

Kaba Access LRP1020C-26D-41 LP1000 Series Mechanical Pushbutton Exit Trim, Satin Chrome

Item #: LRP1020C-26D-41 by Kaba Access

See reviewsSee reviews
In Stock

$776.75

/each
SAVE UP TO 77.67

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Exit Device Strike: Supplied with Exit Device
  • Tailpiece: 2¾" (70 mm) tailpiece for Exit Device operation from outside Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8 lbs. (3.6 kg)
  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Recessed through bolts may be required for Exit Device preparation
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm) Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Base Material

Brass or Bronze

Lock Platform

Exit Device Trim

Color Code

626/US26D

Package Qty

1

Cylinder Type

C-LFIC, Corbin/Russwin

Color

Satin Chrome

Finish

Satin Chrome

Handing

RH

Function

20-Combination Entry and Key Override

Finish Description

Satin Chrome

Lever Style

WL-Winston Lever

Product Type

Exit Device Trim

Series

LP1000 Series Simplex

Trim Design

Escutcheon with Lever

Device Type

Surface Vertical Rod

For Use With

Simplex LP1000 Mechanical Pushbutton Locks

Hand

Right Hand

Warranty

3 yr

Product Material

Heavy-Duty Cast Front Housing

Trim Style

Escutcheon With Lever

Cylinder Type Used

LFIC, Corbin Russwin (6 or 7-Pin Length)

Device Trim Function

Egress with Exit Device Key Override

Function Family

Pushbutton Exit Device Trim

Product Projection

3-15/16 Inch

Trim Plate Width

4-3/8 Inch

Trim Plate Height

8-3/4 Inch

ADA Compliant

No

Finish Family

Satin Chrome

Manufacturer Parent

DormaKaba

Lever Style Family

Straight Return Lever

Sub-Series

LRP1020-C-26D-41

Door Thickness

1-3/4" - 2-1/4"

Access Type

Mechanical

Alternate Part Number-1

119624

Lock Category

Exit Device Lock

Proximity Format

Pushbutton Combination

Knob/Lever Style

Lever
