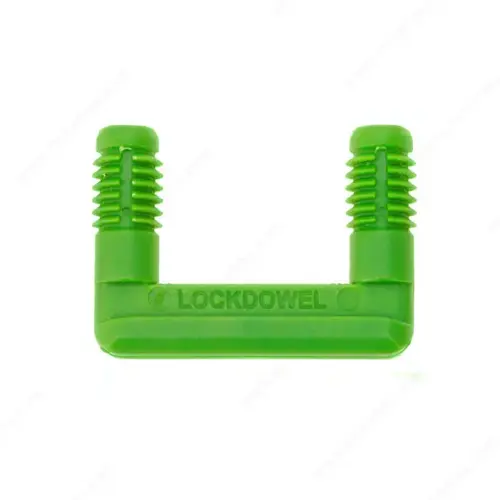

Lockdowel 4226900-XCP2000Click To Copy Nylon Barbed Channel Lock - pack of 2000
Item #: 4226900-XCP2000 by Lockdowel
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Green
Panel Thickness
Min. 3/4 in
Material
Nylon 6-6
Length
1 9/16 in
Function
Assembly
Standards and Certifications
ANSI/BIFMA, AWI
Drilling Diameter
5/16 in
Height - Overall Dimensions
1 5/32 in
Insertion Type
Dismountable
Product Overview
Dismountable and invisible connection
The Nylon Barbed Channel Lock is the main component in the channel lock system and is designed for wood panels with a minimum thickness of 3/4 in. It has slide-to-lock technology with over 100 lbs pull force.
This connector simplifies manufacturing, assembly and installation. It snaps into routed slots, creating a tight joint and finished look.
Simply slide parts out of the routed slots and reassemble them elsewhere as needed.
Advantages And Benefits
- No need for tools, glue or screws
- Easy assembly
- Sturdy, removable joint
- Pull force: 120-160 lbs
- Sheer force: over 100 lbs
- Can be installed in a wide range of softer materials such as particle board, plywood, MDF, and selected lower density plastic materials
Disclaimer
Requires CNC routing capability and edge boring machine
The Nylon Barbed Channel Lock is the main component in the channel lock system and is designed for wood panels with a minimum thickness of 3/4 in. It has slide-to-lock technology with over 100 lbs pull force.
This connector simplifies manufacturing, assembly and installation. It snaps into routed slots, creating a tight joint and finished look.
Simply slide parts out of the routed slots and reassemble them elsewhere as needed.
Advantages And Benefits
- No need for tools, glue or screws
- Easy assembly
- Sturdy, removable joint
- Pull force: 120-160 lbs
- Sheer force: over 100 lbs
- Can be installed in a wide range of softer materials such as particle board, plywood, MDF, and selected lower density plastic materials
Disclaimer
Requires CNC routing capability and edge boring machine
