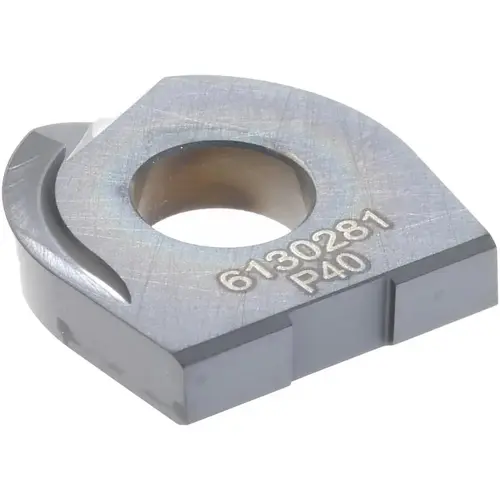

LMT 6130281Click To Copy Milling Insert: WPR 0500-CF, LCP40M, Solid Carbide
Item #: 6130281 by LMT
See reviewsSee reviews
In Stock
$57.77
/eachSAVE UP TO 5.78
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 41 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material Application
Steel
ANSI Code
WPR 0500-CF LCP40M
Number of Cutting Edges
2
Standards
ISO
Thickness (mm)
2.54
Insert Material
Solid Carbide
Series
WPR
Coating Process
PVD
Coating/Finish
TiAIN
Manufacturers Catalog Number
6130281
Material Grade
C5
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1000
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5000
Width (Inch)
1/2
Width (mm - 2 Decimals)
12.70
Coating Classification
PVD
Insert Holding Method
Screw
Multi-use Tool
No
Secondary Workpiece Material
Stainless Steel
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.5000
Insert Shape
Ball Nose Rounded Tip
Chip Breaker
CF
Secondary Workpiece Material Code
M
Insert Style
WPR
Insert Size Code
0500
Inscribed Circle (Inch)
1/2
Cutting Edge Effective Length (Decimal Inch)
0.5000
Manufacturer Grade
LCP40M
Inscribed Circle Range (Decimal Inch)
0.5000 to 0.5100
Single or Double Sided Insert
Single
Thickness Range (Decimal Inch)
0.1000 to 0.1250
Inscribed Circle (mm)
12.70
Iso Code
WPR 0500-CF LCP40M
Product Overview
Milling Insert: WPR 0500-CF, LCP40M, Solid Carbide Coated, 0.1" Thick
