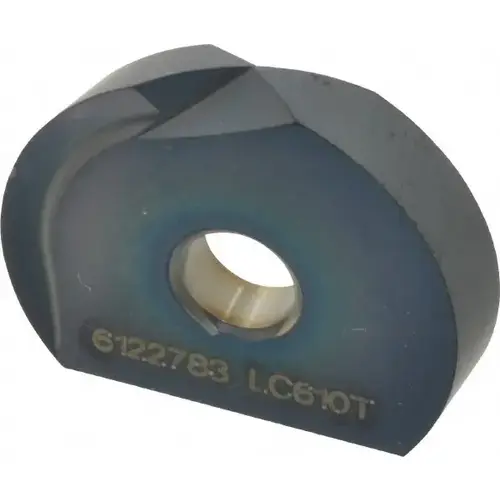

Milling Insert: WPR 1000-CF, LC610T, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LMT 6122783Click To Copy Milling Insert: WPR 1000-CF, LC610T, Solid Carbide

Item #: 6122783 by LMT

See reviewsSee reviews
See reviews summary
In Stock

$105.46

/each
SAVE UP TO 10.55

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Cast Iron

ANSI Code

WPR 1000-CF LC610T

Number of Cutting Edges

2

Standards

ISO

Thickness (mm)

4.06

Insert Material

Solid Carbide

Series

WPR

Coating Process

PVD

Coating/Finish

TiAlN

Manufacturers Catalog Number

6122783

Material Grade

C2

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1600

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

1.0000

Width (Inch)

1

Width (mm - 2 Decimals)

25.40

Coating Classification

PVD

Insert Holding Method

Screw

Multi-use Tool

No

Secondary Workpiece Material

Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

1.0000

Insert Shape

Ball Nose Rounded Tip

Chip Breaker

CF

Secondary Workpiece Material Code

P

Insert Style

WPR

Insert Size Code

1000

Inscribed Circle (Inch)

1

Cutting Edge Effective Length (Decimal Inch)

10.0000

Manufacturer Grade

LC610T

Inscribed Circle Range (Decimal Inch)

1.0000+

Single or Double Sided Insert

Single

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Inscribed Circle (mm)

25.40

Iso Code

WPR 1000-CF LC610T

Product Overview
Milling Insert: WPR 1000-CF, LC610T, Solid Carbide Coated, 0.16" Thick
