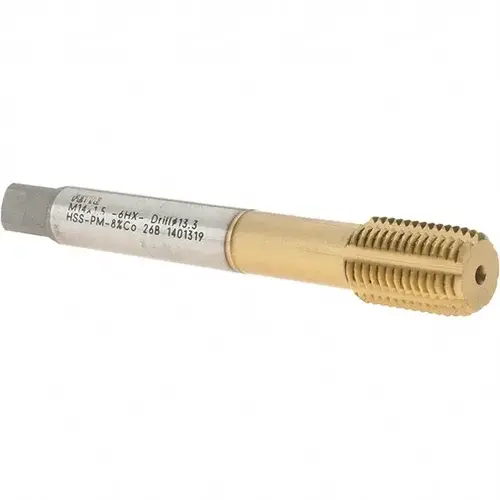

Thread Forming Tap: M14x1.50 Metric Fine, 6HX Class of Fit, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LMT 1401319Click To Copy Thread Forming Tap: M14x1.50 Metric Fine, 6HX Class of Fit, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated

Item #: 1401319 by LMT

See reviewsSee reviews
See reviews summary

$96.57

/each
SAVE UP TO 9.66

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel-E-PM

Application

Blind Hole Threading

Material Application

Steel

Overall Length (mm)

100.00

Thread Direction

Right Hand

Series

6710C

Thread Length (mm)

20.00

Thread Size (mm)

M14x1.5

Thread Standard

Metric Fine

Chamfer

Modified Bottoming

Class Of Fit

6HX

Coating/Finish

TiCN

Coolant Through

No

Overall Length (Decimal Inch)

3.9370

Shank Diameter (Decimal Inch)

0.4331

Shank Diameter (mm)

11.00

Square Size (Decimal Inch)

0.3543

Square Size (mm)

9.00

Thread Length (Decimal Inch)

0.7874

Vendor Drop Ship

N

Chamfered Threads

2-3P

Material Application Code

P

Thread Limit

D7

Oil Grooves

4

Product Overview
Thread Forming Tap: M14x1.50 Metric Fine, 6HX Class of Fit, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated 0.787" Thread Length, 3.937" OAL, D7, Series Form-V
