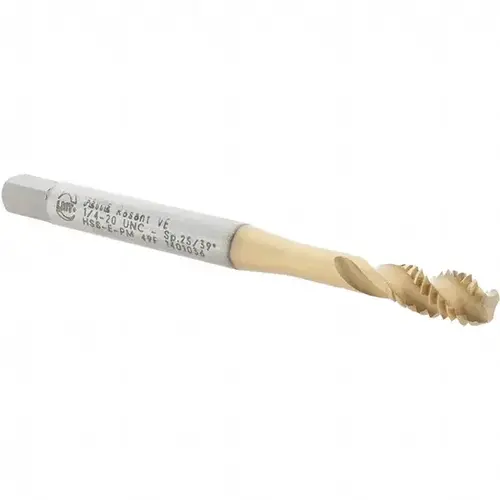

Spiral Flute Tap: 1/4-20, UNC, 3 Flute, Bottoming, 2B & 3B Class of Fit, High Speed Steel, TiCN Plus Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LMT 1401036Click To Copy Spiral Flute Tap: 1/4-20, UNC, 3 Flute, Bottoming, 2B & 3B Class of Fit, High Speed Steel, TiCN Plus Finish

Item #: 1401036 by LMT

See reviewsSee reviews
See reviews summary
In Stock

$83.65

/each
SAVE UP TO 8.37

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High Speed Steel

Application

Blind Hole Threading

Flute Style

Fast

Material Application

Alloyed Gray Cast Iron

Overall Length (mm)

80.00

Helix Angle

40

Number of Flutes

3

Thread Direction

Right Hand

Threads Per Inch

20

Series

Rasant-V

Thread Length (mm)

13.00

Thread Standard

UNC

Chamfer

Bottoming

Class Of Fit

2B

Coating/Finish

TiCN Plus

Coolant Through

No

Overall Length (Decimal Inch)

3.1496

Oversize

No

Shank Diameter (Decimal Inch)

0.2551

Shank Diameter (mm)

6.48

Square Size (Decimal Inch)

0.1910

Square Size (mm)

4.85

Tapping Depth (mm)

30.00

Thread Length (Decimal Inch)

0.5118

Thread Size (Inch)

1/4-20

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

0.6690

Tapping Depth (Decimal Inch)

1.1811

Thread Limit

H5

Product Overview
Spiral Flute Tap: 1/4-20, UNC, 3 Flute, Bottoming, 2B & 3B Class of Fit, High Speed Steel, TiCN Plus Finish 0.5118" Thread Length, 3.1496" OAL, Right Hand Flute, Right Hand Thread, H5 & H3, Series Rasant-V
