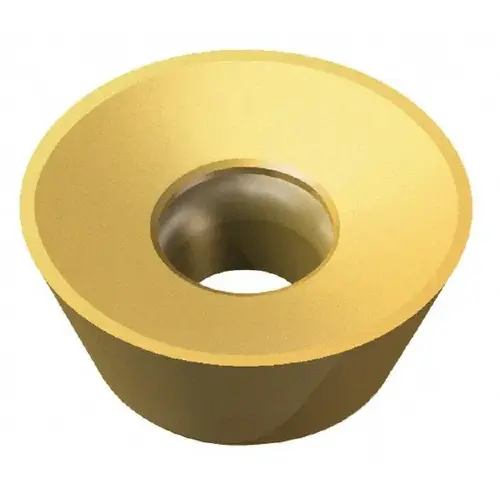

Milling Insert: LC240T, Solid Carbide TiAIN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LMT 1068389Click To Copy Milling Insert: LC240T, Solid Carbide TiAIN

Item #: 1068389 by LMT

See reviewsSee reviews
See reviews summary

$34.86

/each
SAVE UP TO 3.49

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Steel

ANSI Code

RCHX 1606 MO-T 11295-24 LCP40M

Standards

ISO

Thickness (mm)

6.35

Insert Material

Solid Carbide

Series

RCHX

Coating Process

PVD

Coating/Finish

TiAIN

Manufacturers Catalog Number

1068389

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2500

Thickness (Inch)

1/4

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.6299

Width (mm - 2 Decimals)

16.00

Coating Classification

PVD

Insert Holding Method

Screw

Multi-use Tool

No

Secondary Workpiece Material

Stainless Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.6299

Insert Shape

Round

Rake Angle

23

Chip Breaker

TR

Secondary Workpiece Material Code

M

Insert Style

RCHX

Insert Size Code

1606

Hole Diameter (Decimal Inch)

0.2283

Relief Angle

7

Included Angle Degree

23

Hole Diameter (Mm) ( - 0 Decimals)

0.23

Manufacturer Grade

LCP40M

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Single or Double Sided Insert

Single

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Inscribed Circle (mm)

16.00

Iso Code

RCHX 1606 MO-T 11295-24 LCP40M

Product Overview
Milling Insert: LC240T, Solid Carbide TiAlN, TiN Coated, 1/4" Thick
