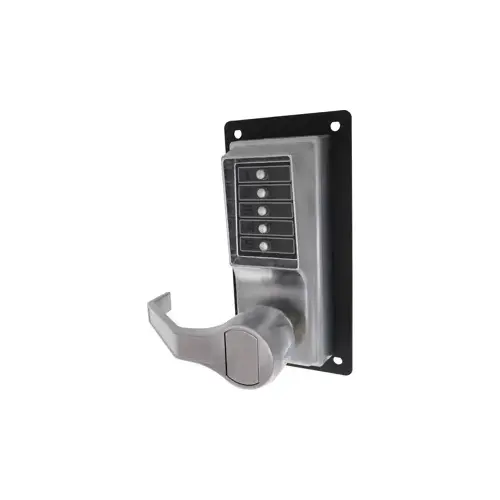

Kaba Access LLP1010-26D-41Click To Copy LP1000 Series Mechanical Pushbutton Exit Trim, Satin Chrome

Mechanical Pushbutton Exit TrimSimplex LP1000

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features:

• Fully mechanical lock eliminates the material and labor expense of battery replacements

• Rim Exit Device - Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)

• Cannot be used with mortise design or vertical rod Exit Devices

• Compatibili

• Single access code—one easy-to-manage code for all users

• Factory-handed; not field reversible

• A cost effective access control solution

Specifications: Exit Device Compatibility:

• Black & Decker (K-12) QED111/112, Detex 10/F10 Series
• Cal Royal 5000/F5000, Dorma 9100, 9300
• Dorex 9500PR/9500FR, Dorex 8500R/8500F
• Detex Advantex Series 10, 20, 21,40, 50, 51
• Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
• Von Duprin 22, 88 NL, 98, 99
• *(requires special K-Hub Adapter Kit)

Operation Modes:

• Pushbutton Access
• Exit Device may be "dogged" without affecting the LP1000

Construction:

• Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever

Numeric Keypad:

• Vandal resistant, solid metal pushbuttons

Handing:

• Factory-handed; not field reversible

Tailpiece:

• 2 3/4" (70 mm) tailpiece for Exit Device operation from outside
• Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)

Minimum Stile Recommended:

• 5" (127 mm)

Weight:

• 8 lbs. (3.6 kg)

Interchangeable Cores:

• Small format—Best and equivalents (6 or 7-pin length); core not included

Removable Cores:

• Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included

Door Preparation:

• Recessed through bolts may be required for Exit Device preparation

Door Thickness:

• 1 3/8" (35 mm) to 2 1/4" (57 mm)
• Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)

Accessibility Standard:

• Americans with Disabilities Act (ADA); fixed ADA-compliant lever

Durability:

• Weather resistant

Fire Rating:

• 3-hour UL/ULC fire rating for "A" labeled doors

Warranty:

• 3-year warranty

Finishes:

• 605 - Bright Brass

• 609 - Antique Brass

• 626 - Satin Chrome

• 625 - Bright Chrome
