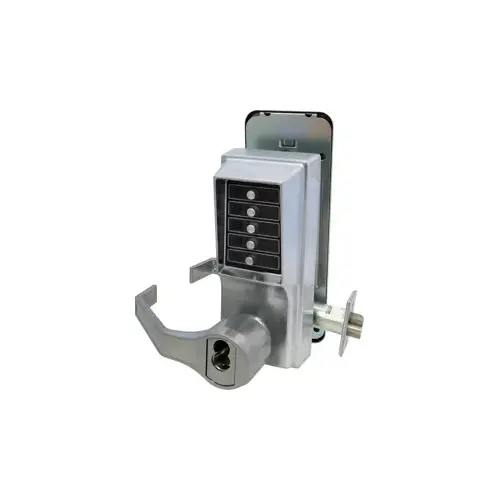

L1000 Series Mechanical Pushbutton Cylindrical Lever Lock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kaba Access LL1021S-26D-41 L1000 Series Mechanical Pushbutton Cylindrical Lever Lock, Satin Chrome

Item #: LL1021S-26D-41 by Kaba Access

UPC #: 036448802265

See reviewsSee reviews
In Stock

$667.51

/each
SAVE UP TO 66.75

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: Standard strike plate; ASA strike plate
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Color

Dull Chrome

Cylinder Type

S-LFIC, Schlage

Package Qty

1

Keyway

Schlage Less Core

Handle Type

Lever

Pack Size

1

Access Type

Keypad

Dimensions

7-3/8"H x 3-1/8"W x 3-13/16"D

Backset

2-3/4 Inch

Base Material

Brass or Bronze

Lock Platform

Cylindrical Lock

Color Code

626/US26D

Door Locks & Knobs Product Type

Mechanical Keypad

General Material

Steel

Hardware Finish Family

Chrome

Maximum User Codes

1

Warranty

3 year

Finish

Satin Chrome

Handing

LH

Function

2-Combination Entry and Key Override

Finish Description

Satin Chrome

Product Type

Push Button Lock

Series

L1000 Series Simplex

Bore Size

2.1250

ADA Approved

False

UNSPSC

46171500

Application

Commercial; Residential; Industrial; Healthcare; Education; Military and Government; Utilities

Hand

Left Hand

ADA Compliant

No

Finish Family

Satin Chrome

Included Components

Installation Manual; Full-Scale Template; Required Installation Hardware

Lever Style

Simplex

Rose/Escutcheon Trim

Simplex

Door Cross Bore

2.125 Inch

Locking Device

Cylindrical

Standards

UL Listed; D.O.D. Compliant

Function Family

Pushbutton Lock

Minimum Stile Width

5 Inch

Faceplate Type

Floating

Features

Lock is Easily Programmed Via Keypad Without Removing Lock From the Door; Heavy-Duty Cylindrical Lock Housing With Cast Front Housing; Unified Trim Plate; Weather Resistant; Solid Metal Pushbuttons

Door Thickness

Cylindrical: 1-3/8" to 2-1/4"; Pre-Assembled to Accommodate Door: 1-5/8" to 2"

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Latch Throw

1/2 Inch

Manufacturer Parent

DormaKaba

Programming Method

Keypad

Number of Access Codes

1

Key Override Core Type

Small Format Interchangeable Core

Lock Dimensions

7-3/8" x 3-1/8"

Key Override Brand

Schlage

Sub-Series

CL_Push_Button_Locks_kaba_access_42

Alternate Part Number-1

119574

Lock Category

Cylindrical Lock

Proximity Format

Pushbutton Combination

Knob/Lever Style

Lever
