4040XP Series Surface Mounted Door Closer

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

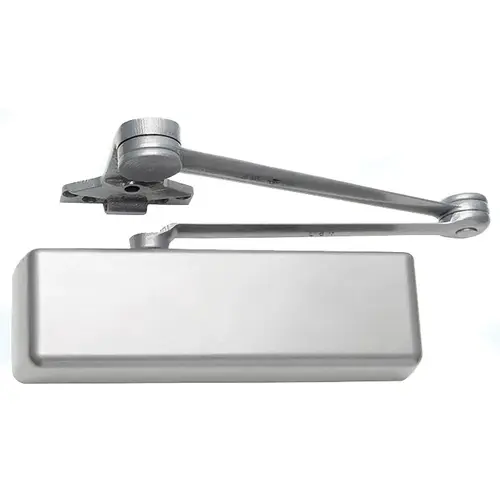

LCN 4040XP-RW/PA-26D-RH 4040XP Series Surface Mounted Door Closer

Item #: 4040XP-RW/PA-26D-RH by LCN

See reviewsSee reviews
See reviews summary

$1,007.89

/each
SAVE UP TO 100.79
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Mounting Type

Tri-Pack (Pull Side Top Jamb Parallel) Mount

Grade

ANSI/BHMA Grade 1

Application

Most Demanding High-Use-And-Abuse Applications

Hand

Right Hand

Handing

Right Hand

Warranty

30 year

Color Code

626/US26D

Spring Size

Adjustable 1-6

Function

RW/PA-Regular Arm w/PA Shoe

Door Thickness

1-3/4 inch

Door Size

5' (Interior); 4' (Exterior)

Maximum Door Opening

120° (Hinge Pull, Top Jamp Push); 180° (Parallel Arm)

Finish Description

Satin Chrome

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

Patented Green Dial Spring Force Indicator

Closer Arm Construction

Forged Steel

Product Material

Cast Iron

Closer Cover

Metal Cover

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11" (Hinge Pull, Top Jamb Push)

Closer Arm Type

Regular Arm with Parallel Arm Bracket

Closer Clearance

2-3/8" (Hinge Pull); 4" (Parallel Arm)

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Liquid X Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

3/4 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

2-1/4" x 5"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Type

Door Closer/Holder/Stop

Series

4040XP Series

Manufacturer Parent

Allegion

Sub-Series

DC_Surface Mounted Closers_lcn_67

Product Overview
Cast Iron Body, Door Closer With Regular Arm and 62PA Shoe, Metal Cover, Right Hand, Satin Chrome (626), TBSRT- Through Bolt Self Reaming and Tapping Screws
