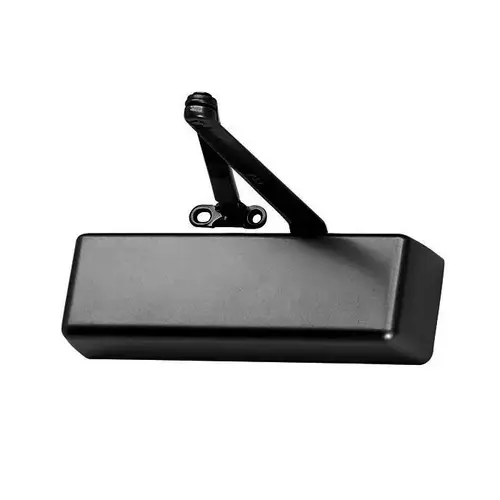

LCN 4011-REG-BLK-LH 4010 Series Surface Mounted Door Closer
Item #: 4011-REG-BLK-LH by LCN Closers
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Sub-Series
LCN-4011-REG-LH
Closer Hold-Open
false
Manufacturer Parent
Allegion
Series
4010 Series
Product Type
Door Closer/Holder/Stop
Features
Full Complement Bearing; Double Heat-Treated Steel Pinion Journal
Fastener Type
Self Reaming and Tapping Screws
Templating
Peel-n-Stick
Mounting Hole Size
2-1/2" x 6"
Function Family
Non Hold Open Door Closer
Closer Pinion Diameter
11/16 Inch
Closer Piston Diameter
1-1/2 Inch
Closer Fluid
All Weather Fluid
Closer Fluid Temperature Range
-30°F to 120°F
Closer Arm Type
Regular Arm
Closer Arm Extension
11-1/2 Inch
Standards
Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act
Closer Cover
Full Plastic Cover
Product Material
Cast Iron
Closer Arm Construction
Forged
Included Components
Patented Green Dial Spring Force Indicator
Finish Family
Black
ADA Compliant
YES
Product Width
2-1/4 Inch
Product Length
12-1/4 Inch
Product Height
3-1/2 Inch
Finish Description
Black
Maximum Door Opening
140°
Door Size
4' 6" (Interior); 3' 6" (Exterior)
Mount
Hinge (Pull Side)
Door Thickness
1-3/4 inch
Function
REG-Regular Arm
Spring Size
Adjustable 1-5
Color
Black
Warranty
30 year
Handing
Left Hand
Hand
Left Hand
Application
High Traffic Applications
Grade
ANSI/BHMA Grade 1
Mounting Type
Hinge (Pull Side)
