30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish Family
Dark Bronze
Included Components

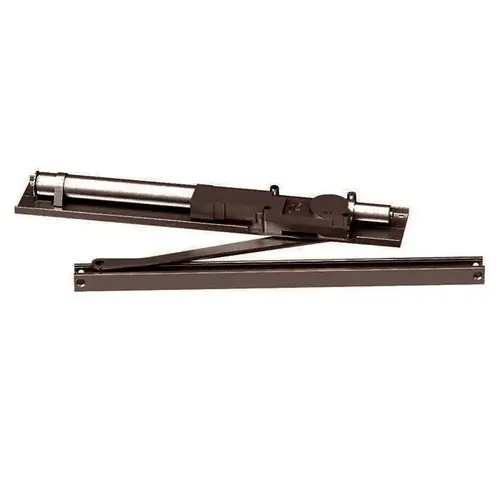

Standard Cylinder with Mounting Plate; Standard Arm; Standard Track; Wood and Machine Screws
Minimum Door Thickness
1-3/4 Inch
Fasteners
Wood and Machine Screws
Standards
Grade 1 - ANSI A156.4; UL 10C; BAA
Closer Arm Type
Standard Arm and Track
Hold-Open Type
110° Hold Open
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/8 Inch
Closer Pinion Diameter
11/16 Inch
Function Family
Hold Open Door Closer
For Door Width
Exterior Door Width - Size 1 (28"); Interior (28")
Closer Action
Single Acting
Features
Full Complement Bearing; The Single Lever Arm and Roller Assembly Provide Smooth Quiet Door Control; Cast Iron Body
Product Type
Door Closer/Holder/Stop
Series
2030 Series
Manufacturer Parent
Allegion
Sub-Series
DC_Concealed_Closers_lcn_1
ADA Compliant
YES
Product Width
1-5/8 Inch
Product Length
21-7/8 Inch
Product Height
3-23/32 Inch
Finish Description
Dark Bronze Painted
Maximum Door Weight
225 lbs.
Function
STD-Standard Arm
Spring Size
1
Warranty
15 Year
Handing
Left Hand
Hand
Left Hand
Grade
ANSI/BHMA Grade 1
Mounting Type
Concealed In Frame Mount
