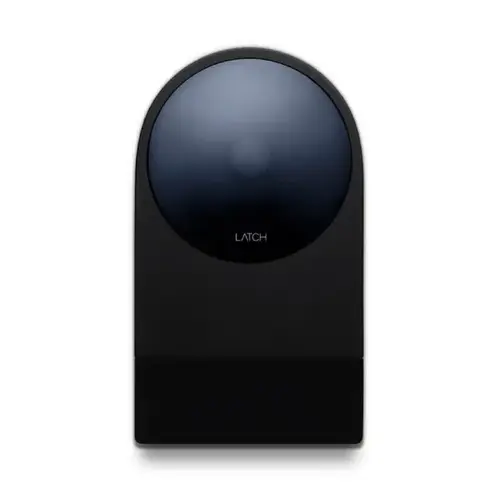

Latch R2LB1 Reader Door Controller for Common Area Entry Locks Black Finish

Latch R SeriesReader and Door Controller

R is for Reader (and Revolutionary).
The Latch R combines a reader, door controller, and management system into one simple product. The device directly connects to any electrified locking mechanism in addition to motion detectors and request to exit devices.

Specifications:Finishes:

• Black

Configuration:

• Standalone
• Panel

Features:Credential Types:

• Smartphone
• NFC Card
• Doorcode

Users:

• 5000

Camera:

• 135° image capture

Integration:

• With existing access panels or standalone

Management:

• App and Cloud

Communication:Wireless Standards:

• Bluetooth Low Energy (BLE)
• Near Field Communication (NFC)

Wired Standards:

• Ethernet
• Serial
• Wiegand (output only)

NFC Frequency:

• 13.56 MHz

NFC Read Range:

• Up to 0.75"

NFC Type:

• MiFare Classic

Supported Smartphones:

• iOS and Android

Interface:

• Mobile apps
• Touchpad
• NFC
• Web

• Software licensing and certification is required please contact the EAC team for pricing and certification process.

Inputs, Outputs, and Power:Power Type:

• Class 2 isolated
• UL listed DC power supply

Supply Voltage:

• 12V DC to 24V DC

Relay:

• 1.5A @ 24V DC or 16V AC max

Lock Relay:

• Configurable SPST/normally open relay

Inputs and Outputs:

• 3 configurable inputs/outputs

Termination:

• 10 conductor cable with pre-tinned leads

Environmental:Operating Temperature:

• Operating and Storage: -40°C to 66°C(-30°C)

Operating Humidity:

• 0–93% relative humidity, non-condensing at 32°C

Environmental:

• IP65
• IK04

Certifications and Warranty:Certifications:

• FCC Part 15 (US)
• IC RSS (Canada)
• UL/CSA 62368-1
• RoHS

Warranty:

• 1-year limited warranty on electronic components
• 5-year limited warranty on mechanical components

Mechanical Specifications:Mounting Options:

• Surface mount, compatible with single-gang boxes
