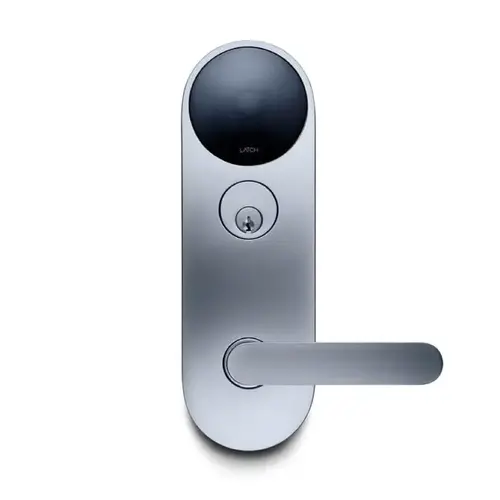

Latch M2LS1LL-RH Mortise lock cartridge designed for apartment entry doors Silver
Item #: M2LS1LL-RH by Latch
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Silver
Handing
RH
Keyway
Schlage C
Function
Wireless
Door Thickness
1-3/4 inch
Cylinder Type
Conventional Cylinder
Finish Description
Silver
Lever Style
L-Standard
Keyblank Grouping
SCHL-C-6-1
Keying Charges
CCAM
Product Type
Electronic Cylindrical Lock
Series
M Series
Strike Size
4-7/8" x 1-1/4"; 123.8 x 31.75
Bolt Backset
2-3/4 Inch
Manufacturer Parent
Latch
Product Width
Inner Trim: 2.4"; Outer Trim: 2.3"
Latch Throw
1 Inch
Hand
Right Hand
Grade
ANSI/BHMA Grade 1
Sub-Series
M2LS1LL-RH
Corner Type
Ansi Strike; Curved Lip Strike
ADA Compliant
YES
Front Size
8" x 1/4" x 0.06"
Operating Temperature
Interior: -20 to 54°C
Product Height
Inner Trim: 9.7"; Outer Trim: 9.7"
Standards
UL 10B/C (90 min); CAN/ULC S104; FCC Part 15; IC RSS; FL TAS 201/202/203-94; Built to ANSI/BHMA 156.13 Grade 1; ADA
Battery Type
AA
Features
Credential Types Smartphone, NFC Keycard, Doorcode, Mechanical Key; 1500 Users; 0–95% Relative Humidity; Non-Condensing; Lens: IP65; Exterior/Interior Assemblies: IP55 Interior Assembly Not Intended for Outdoor Use
Strike Type
ANSI Curved Lip
Product Length
Inner Trim: 2.9"; Outer Trim: 2.7"
Warranty
2 Year Limited on Electronic Components; 5 Year Limited on Mechanical Components
Finish Family
Silver
