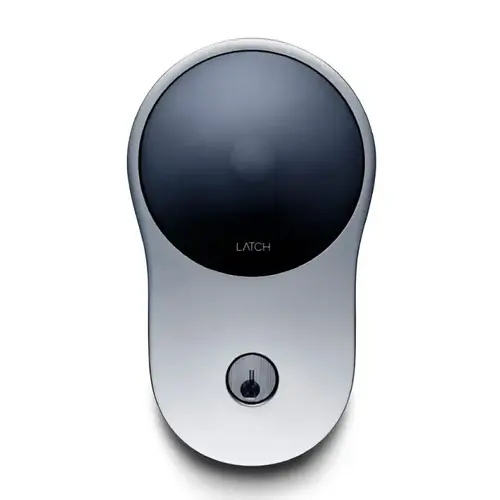

Latch C1LS1 Cylindrical deadbolt designed for apartment entry doors Silver

Item #: C1LS1 by Latch

See reviewsSee reviews

$381.22

/each
SAVE UP TO 38.12

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Series

C Series

Product Type

Electronic Auxiliary Lock

Keying Charges

CCAM

Keyblank Grouping

SCHL-C-6-1

Finish Description

Silver

Cylinder Type

Conventional

Door Thickness

1-3/4 inch

Function

Wireless

Keyway

Schlage C

Finish

Silver

Bolt Backset

2-3/8" or 2-3/4"

Manufacturer Parent

Latch

Product Width

Inner Trim: 1.6"; Outer Trim: 0.9"

Latch Throw

1 Inch

Hand

Field Reversible

Grade

ANSI/BHMA Grade 1

Sub-Series

RL_Electronic_Locks_latch_1

ADA Compliant

YES

Front Size

1" x 2-1/4"

Operating Temperature

Exterior: -22 to 158°F; Interior: -4 to 129.2°F

Product Height

Inner Trim: 9.2"; Outer Trim: 3.4"

Standards

ANSI 156.36 Grade 1; ADA; IC RSS; FCC Part 15; UL 10C (90 min)

Battery Type

AA

Features

Keying Charges CCAM; Credential Type Smartphone, NFC Card, Doorcode, Mechanical Key; Users 200; Camera 135° Image Capture; NFC Frequency 13.56 MHz; NFC Read Range Up to 0.75"; Supported Smartphones IOS and Android

Product Length

Inner Trim: 3"; Outer Trim: 3.2"

Warranty

1 Year Limited on Electronic Components; 5 Year Limited Warranty on Mechanical Components

Included Components

(6) AA Non-Rechargeable Alkaline Batteries

Finish Family

Silver

Product Overview
Latch C SeriesCylindrical Deadbolt

C is for Cylindrical.
The Latch C is a cylindrical deadbolt that can easily retrofit into an existing building or add to the scope of a new project. Like the M Series, it doesn’t require network connectivity and is rated to meet the most stringent building codes.

Specifications:Finishes:
  • Silver
  • Black
  • Gold
Lever Styles:
  • Standard
  • Return
Features:Credential Types:
  • Smartphone
  • NFC Card
  • Doorcode
  • Mechanical Key
Users:
  • 200
Camera:
  • 135° image capture
Management:
  • App and Cloud
Communication:Wireless Standards:
  • Bluetooth Low Energy (BLE)
  • Near Field Communication (NFC)
NFC Frequency:
  • 13.56 MHz
NFC Read Range:
  • Up to 0.75"
NFC Type:
  • MiFare Classic
Supported Smartphones:
  • iOS and Android
Interface:
  • Mobile apps
  • Touchpad
  • NFC
  • Web
  • Software licensing and certification is required please contact the EAC team for pricing and certification process.
Power:Power Supply:
  • 6 AA non-rechargeable alkaline batteries
Battery Status:
  • Monitoring and notifications in Latch software suite
Environmental:Operating Temperature:
  • Exterior: -22°F (-30°C) to 158°F (70°C)
  • Interior: -4°F (-20°C) to 129.2°F (54°C)
Operating Humidity:
  • 0–95% relative humidity, non-condensing
Certifications and Warranty:Certifications:
  • UL 10C (90 min)
  • FCC Part 15
  • IC RSS
  • Built to ANSI 156.36 Grade 1
Compliance:
  • Complies with American Disabilities Act
Warranty:
  • 1-year limited warranty on electronic components
  • 5-year limited warranty on mechanical components
Mechanical Specifications:Chassis:
  • Deadbolt
Handing:
  • Field reversible
Door Thickness Compatibility:
  • 1-3/4" and 1-3/8"
Backset Compatibility:
  • 2-3/4" and 2-3/8"
Door Preparation:
  • 5-1/2" Center to Center
Deadbolt Throw:
  • 1"
Faceplate Options:
  • 1" x 2-1/4" round corner
  • 1" x 2-1/4" square corner
  • Drive-in
Strike Plate:
  • 1-1/8" x 2-3/4" security strike
Cylinder:
  • Schlage Type C keyway standard, with custom and specific cylinders available on request
