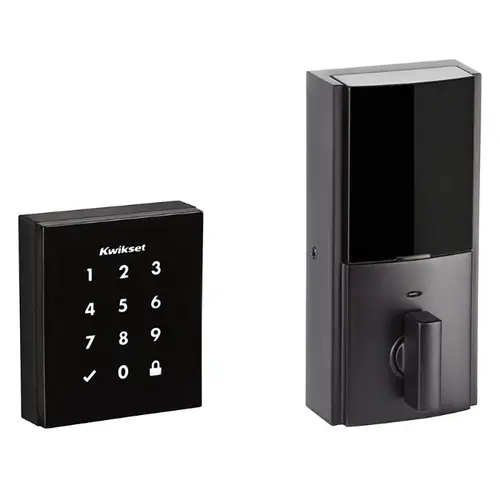

Kwikset 954-OBN-ZW500-11P Obsidian Touchscreen Electronic Deadbolt Venetian Bronze
Item #: 954-OBN-ZW500-11P by Kwikset
UPC #: 883351618793
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Venetian Bronze
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch
Keyway
Kwikset KW1
Function
954-Obsidian Deadbolt
Door Thickness
1-3/8" to 2"
Cylinder Type
Conventional Cylinder
Finish Description
Venetian Bronze
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Square
Keying Charges
Residential-Conventional
Product Material
Zinc
Product Type
Touchscreen Lock
Series
954 Series
Box Length
9.7500
Box Width
4.2500
Box Height
4.0000
Wireless Technology
Z-Wave
Interior Length
2-1/8"
Manufacturer Parent
Spectrum
Compatible Technologies
Google Home; Alexa; SmartThings; Ring; Wink; Vera
Exterior Width
2-25/32"
Automatic Door Locking
Yes
Handing
Reversible
Battery Included
Yes
Exterior Height
3-7/32"
Faceplate Dimension
1" x 2-1/4"
Hand
Reversible
Sub-Series
RL_Electronic_Locks_kwikset_15
Interior Height
2-11/16"
Exterior Length
13/16"
Keyed or Keyless
Keyless
ADA Compliant
No
Number of Codes
30 Inch Device
Strike
RCS-Round Corner Strike
Box Dimensions (L x W x H)
4.00x4.25x9.75
Alarm Feature
Yes
Standards
BHMA Grade 2
Battery Type
4 AA
Features
One-Touch Locking Dedicated Button To Easily Lock Your Door; Audible Beep And Visual Flash When Batteries Are Low
Interior Width
2-11/16"
Warranty
1 Year
Included Components
Latch; Interior Assembly; Exterior Touchscreen; Strike; Adapter Ring; Mounting Plate; Fasteners; Battery
Finish Family
Dark Bronze
Product Overview
ObsidianTouchscreen Electronic Deadbolt
This style-forward lock is the future of door hardware. Named after the volcanic rock, Obsidian is a visually striking touchscreen that eliminates traditional keyways and opts for a low profile, contemporary design to deliver a stylish, modern smart lock that is secure, innovative and convenient.
Features:- Sleek, low-profile design with a glass-like surface
- Keyless Convenience - Enter your home with user codes instead of having to carry keys
- One-Touch Locking Dedicated button to easily lock your door
- Advanced Touchscreen is ultra-responsive to touch for instant screen display and fast usercode entry
- SecureScreen™ Patented technology to help prevent code detection from fingerprints on the touchscreen
- Up to 30 customizable user codes for increased security
- Mastercode provides improved user access code management
- Alarm sounds after 3 incorrect codes are consecutively entered and the screen temporarily locks out
- Keywayless entry - no more keys to hide and no keyway to pick or bump
- Tamper-resistant interior cover prevents unauthorized access to programming buttons
- Audible beep and visual flash when batteries are low
- Use a 9V battery as backup power in case the batteries run out
- Z-Wave Plus Certified with the Z-Wave 500 chipset
- Extended wireless range and superior 128-bit wireless encryption
- Installs in minutes with only a screwdriver
- Fits all standard doors
- No new screw holes required
- No hand wiring needed
- BHMA Grade 2 Certified
- 128-bit Advanced Encryption Standard (AES) communication
- SecureScreen - patented security feature
- Mastercode feature
- 16 user access code capacity
- Single Cylinder Deadbolt
- 1 1/2" and 2 1/8" diameter face hole and 1" diameter latch hole
- Adjustable 2 3/8" or 2 3/4"
- 1 3/8" - 2"
- 1" x 2 1/4" round corner standard
- Round corner
- Round corner adjustable 2 3/8" x 2 3/4"
- 1" throw, steel deadbolt
- Reversible
- 6V (4 x AA alkaline batteries required)
- 11P - Venetian Bronze
- 15 - Satin Nickel
