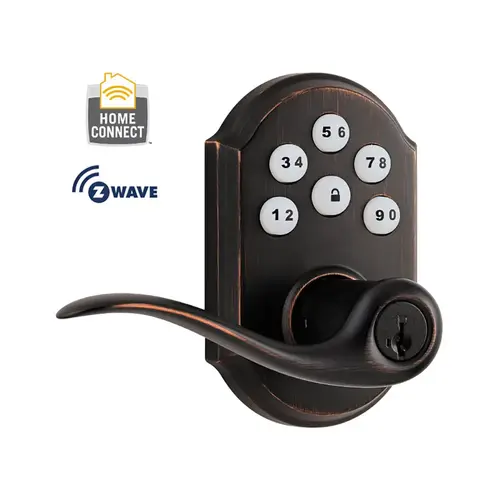

SmartCode 912 Touchpad Electronic Lever Venetian Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kwikset 912-TNL-TRL-ZW-11P-SMT-RCAL-RCS-CPClick To Copy SmartCode 912 Touchpad Electronic Lever Venetian Bronze

Item #: 912-TNL-TRL-ZW-11P-SMT-RCAL-RCS-CP by Kwikset

UPC #: 883351314398

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$307.18

/each
SAVE UP TO 30.72

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

2.6900

Finish

Venetian Bronze

Grade

ANSI/BHMA Grade 2

Lever Length

4.2200

Backset

RCAL-Round Corner Adjustable Latch

Keyway

Kwikset KW1

Function

912-SmartCode Lever

Door Thickness

1-3/8" to 1-3/4"

Strike

RCS-Round Corner Strike

Bore Size

2.1250

Cylinder Type

SmartKey Security

Finish Description

Venetian Bronze

Product Height

Inner Trim: 6-3/16"; Outer Trim: 4-29/64"

Product Length

Inner Trim: 5-13/16"; Outer Trim: 5-39/64"

Included Components

(2) Keys

Lever Style

TNL-Tustin

Keyblank Grouping

KWIK-KW1-5-1

Rose/Escutcheon Trim

Arch Rose

Door Cross Bore

2.125 Inch

Keying Charges

Residential-Conventional

Product Material

Zinc

Product Type

Touchscreen Lock

Series

SmartCode Series Clear Pack

Box Length

5.0000

Box Width

5.5000

Box Height

10.0000

Strike Size

2-3/4" x 2-1/8"

Bolt Backset

2-3/8" or 2-3/4"

Manufacturer Parent

Spectrum

Product Width

Inner Trim: 3-27/64"; Outer Trim: 2-11/16"

Latch Throw

1/2 Inch

Door Edge Bore

1 Inch

Hand

Reversible

Low Battery Indicator

Yes

Sub-Series

RL_Electronic_Locks_kwikset_3

Corner Type

Round

ADA Compliant

YES

Front Size

1" x 2-1/4"

Operating Temperature

Exterior: -40 to 150°F; Interior: 32 to 140°F

Lever Length-Inches

4.22 Inch

Latchbolt Type

Round Corner Adjustable

Standards

UL; Z-Wave; FCC Part 15

Battery Type

AA

Features

Keypad Stays Lit for 30 Seconds After Inactivity; 30 Second Auto-Locking Feature Available; Easily Installs in Minutes With Just a Screwdriver; Works With Alexa, SmartThings, Google Home, Ring, Wink, Vera

Color Code

11P

Warranty

Lifetime Mechanical and Finish Warranty; 1 Year Electronics

Finish Family

Dark Bronze

Product Overview
SmartCode 912Electronic Tustin Lever with Z-Wave Technology

Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock.

Features:
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Keyed lever operated by key outside or electronic keypad and thumb turn inside
  • Comes with 2 keys
  • Latch is 20 minute fire rated with round corner face
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Keypad stays lit for 30 seconds after inactivity
  • Expanding your security system solution with Home Connect technology, your keyless entry lock will now communicate wirelessly to security and home automation systems via Z-Wave
  • 30 second Auto-Locking feature available
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty, 1 year electronics warranty
Compatible Technologies:
  • Alexa
  • SmartThings
  • Google Home
  • Ring
  • Wink
  • Vera
Specifications: Door Prep:
  • 2-1/8" diameter face hole & 1" diameter latch hole
Backset:
  • Adjustable to 2-3/8" or 2-3/4"
Door Thickness:
  • 1-3/8" to 2" automatic adjustment
Cylinder:
  • SmartKey Security
Faceplate:
  • 1" x 2-1/4". Round corner standard
Strikes:
  • 2-1/4" full lip. Round corner
Bolt:
  • 1/2" throw
Door Handing:
  • Reversible
Batteries:
  • 4 AA Alkaline
Wireless Communication:
  • Z-Wave wireless technology
Operation:
  • 908.42 MHz (US)
Range:
  • Typical 100ft line of sight
Finishes:
  • 11P - Venetian Bronze
  • 15 - Satin Nickel
  • L03 - Polished Brass
