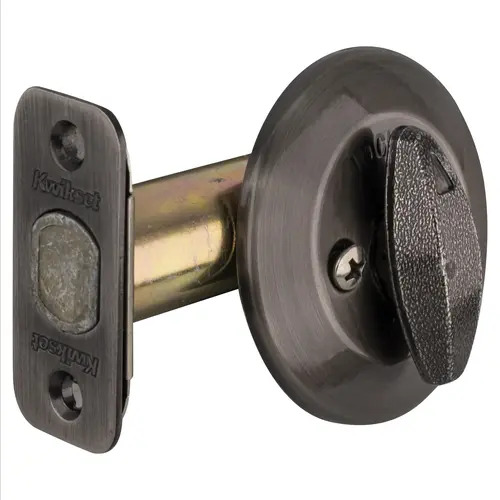

Kwikset 663-15A-RCL-RCS 663 One-Sided Deadbolt Satin Nickel Blackened

660 DeadboltFeaturing SmartKey®

Kwikset’s 660 Deadbolt offers effective security at an affordable price.

Features:

• Easy to Install

• Featuring SmartKey Security™ - protecting againstadvanced break-in techniques

• Features Microban® antimicrobial finish protection*

• ANSI/BHMA Grade 3 Certified Security & Quality

• *Microban® available in the following finishes:Polished Brass (3), Antique Brass (5), Satin Nickel (15), Venetian Bronze (11p),and Iron Black (514)

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge Bore 1"
• Latch face 1" x 2 1/4"

Backset:

• Adjustable to 2 3/8" or 2 3/4" standard

Door Thickness:

• 1 3/8" - 1 3/4" doors standard

Cylinder:

• SmartKey™ or 5-Pin Pin & Tumbler

Faceplates:

• 1" x 2 1/4"
• Specify round corner, square corner or drive-in

Strikes:

• 1" x 2 1/4" full
• Specify round corner or square corner
• Other options available

Bolt:

• 1" throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• Interior turn piece meets 4.13.9 ADA requirements

UL:

• N/A

Functions: 660 Single Cylinder:

• Deadbolt operated by key outside andthumb turn inside.

663 Thumb Turn Only:

• Deadbolt operated by thumb turn one side. No trim on exterior.

665 Double Cylinder:

• Deadbolt operated by key both sides

Finishes:

• *Polished Brass - 3

• *Antique Brass - 5

• *Venetian Bronze - 11P

• *Satin Nickel - 15

• Antique Nickel - 15A

• Polished Chrome - 26

• Satin Chrome - 26D

• *Microban®
• Iron Black finish available in 660 only
