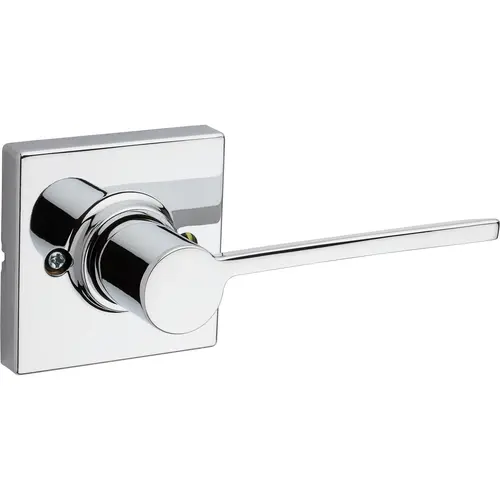

Kwikset 488LRLSQTRH-26Click To Copy 488LRL SQT RH 26 Ladera Dummy - Polished Chrome

Ladera LeverFeaturing SmartKey

Simple and understated, the Ladera lever will surely delight. The linear and unadorned look of the Ladera lever makes it an excellent choice for a transitional or contemporary themed décor.

Features:

• Reversible lever fits both left and right-hand doors

• Available with square or round rose

• ANSI/BHMA Grade 3 Certified

Specifications: Door Prep:

• 2-1/8" diameter face hole
• & 1"diameter latch hole

Backset:

• Adjustable 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/8" - 1-3/4" Doors standard. 2 1/4" doors optional on 200 and 405 functions only

Cylinder:

• SmartKey Security™ or traditional 5-Pin pin & tumbler

Faceplates:

• 1" x 2-1/4" Specify round corner, square corner or drive-in

Strikes:

• 2-1/4" Full lip round corner strike. Other options available

Bolt:

• 1/2" Throw

Door Handing:

• Reversible for passage, privacy or entry. Specify handing only with inactive levers

ANSI/BHMA:

• Grade 3
• (all functions except 488)

ADA:

• Functions 200 and 420 are in compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA)

Functions: Passage/Hall/Closet:

• Both levers always free– 200 LRL

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key– 300 LRL

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton inside – 405 LRL SMT

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation– 488 LRL

Finishes:

• Venetian Bronze 11P*

• Satin Nickel 15*

• MatteBlack 514*†

• Polished Chrome 26

• Satin Chrome 26D

• *Microban Antimicrobial Technology
• †Matte Black finish available in square rose only
