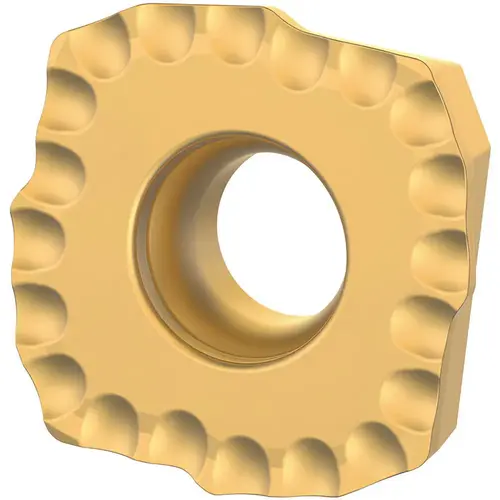

Indexable Drill Inserts; Insert Style: DFPR ; Insert Material: Carbide ; Manufacturer Grade: KC7140 ; Thickness (mm): 3.00 ; Inscribed Circle (Decimal Inch): 0.3900 ; Inscribed Circle (mm): 9.90 TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 7034242Click To Copy Indexable Drill Inserts; Insert Style: DFPR ; Insert Material: Carbide ; Manufacturer Grade: KC7140 ; Thickness (mm): 3.00 ; Inscribed Circle (Decimal Inch): 0.3900 ; Inscribed Circle (mm): 9.90 TiN

Item #: 7034242 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$41.67

/each
SAVE UP TO 4.17

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 80 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Proprietary

Hole Diameter

0.0200in

Length (mm)

8.09

ANSI Code

DFPR100305LCI

Chipbreaker

LC

Thickness (mm)

3.00

Insert Material

Carbide

Series

Drill Fix

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0200

Length (Decimal Inch - 4 Decimals)

0.318

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.318

Width (mm - 2 Decimals)

8.09

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3900

Insert Style

DFPR

Insert Size Code

10

Relief Angle

8

Included Angle Degree

8

Compatible Drill Style

DFPR

Manufacturer Grade

KC7140

Inscribed Circle (mm)

9.90

Corner Radius (mm)

0.50

Iso Code

DFPR100305LCI

Product Overview
Indexable Drill Inserts; Insert Style: DFPR ; Insert Material: Carbide ; Manufacturer Grade: KC7140 ; Thickness (mm): 3.00 ; Inscribed Circle (Decimal Inch): 0.3900 ; Inscribed Circle (mm): 9.90
