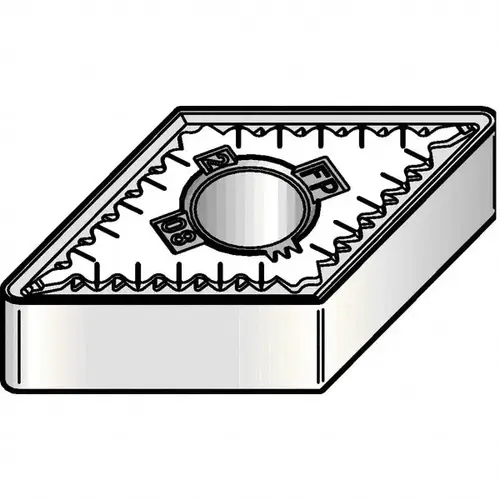

Turning Insert: DNMG331FP KCS10B, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6687102-XCP5Click To Copy Turning Insert: DNMG331FP KCS10B, Solid Carbide - pack of 5

Item #: 6687102-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$131.90

/package
SAVE UP TO 13.19

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

3/8

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Side Clearance

Negative

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.3049

ISO Insert Code

DNMG110404

Iso Code

DNMG110404FP

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Width (Decimal Inch - 4 Decimals)

0.3750

Relief Angle

0

Cutting Edge Style

Honed

Clearance Code

N

Rake

Negative

Material Grade

S10

ANSI Insert Code

DNMG331

Insert Length (Decimal Inch)

0.9156

Insert Holding Method

Clamp

Coating/Finish

AlTiN

Rake Angle

15

UNSPSC Code

23242105

Corner Radius (Inch)

1/64

Insert Style

DNMG

Manufacturers Catalog Number

6687102

ANSI Size Code

331

Insert Hand

Neutral

Manufacturer Grade

KCS10B

Inscribed Circle (Inch)

3/8

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

PVD

Primary Workpiece Material

Stainless Steel

Insert Shape Code

D

Corner Radius (Decimal Inch)

0.0156

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.1500

Chip Breaker

FP

Multi-Use Application

Turning

Length Range (Decimal Inch)

0.7000 - 10.0000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

PVD

ISO Size Code

110404

Wiper Edge

No

Insert Size Code

331

Included Angle

55

Number of Cutting Edges

4

Series

KENLOC

Insert Shape

D - Diamond (Rhombic) 55-Deg

Chip Breaker Operation

Finishing

Primary Workpiece Material Code

P

Product Overview
Turning Insert: DNMG331FP KCS10B, Solid Carbide AlTiN Coated, 0.4578" Long, 0.15" Inscribed Circle, 1/64" Corner Radius
