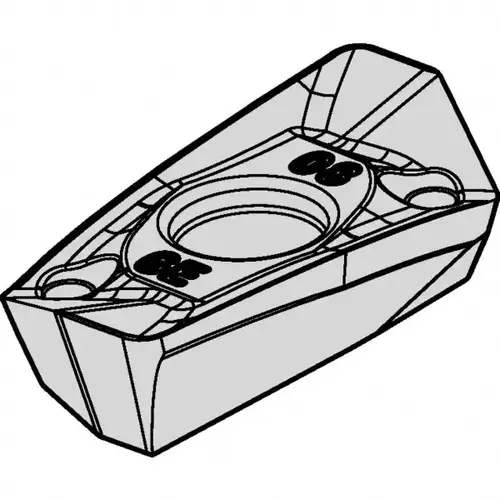

Kennametal 6172130-XCP5 Milling Insert: EDPT140412PDSRGD, KCSM40, Solid Carbide - pack of 5

Item #: 6172130-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$170.98

/package
SAVE UP TO 17.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

EDPT140412PDSRGD

Thickness Range (Decimal Inch)

0.1750 to 0.1850

Length Range (Decimal Inch)

0.6500 to 0.7000

Cutter Series Compatibility

Mill 1-14

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Manufacturer Grade

KCSM40

Hole Diameter (Mm) ( - 0 Decimals)

0.13

Included Angle Degree

70

Relief Angle

15.00

Hole Diameter (Decimal Inch)

0.1339

Insert Size Code

1412

Insert Style

EDPT

Chip Breaker

GD

Rake Angle

15

Insert Shape

Parallelogram

Corner Radius (Inch)

3/64

Inscribed Circle (Decimal Inch)

0.3288

Insert Hand

Right Hand

Rake

Positive

Multi-use Tool

Yes

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

8.50

Width (Decimal Inch - 4 Decimals)

0.3288

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Decimal Inch - 4 Decimals)

0.1772

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Manufacturers Catalog Number

EDPT140412PDSRGD

Length (Inch)

11/16

Length (Decimal Inch - 4 Decimals)

0.6882

Corner Radius (Decimal Inch)

0.0468

Coating/Finish

TiAlN

Coating Process

PVD

Series

EDPT

Insert Material

Solid Carbide

Thickness (mm)

4.50

Standards

ANSI

Number of Cutting Edges

2

ANSI Code

EP1412SGD

Material Application

Steel

Cutting Edge Style

Chamfered

Product Overview
Milling Insert: EDPT140412PDSRGD, KCSM40, Solid Carbide AlTiN, TiN Coated, 4.5 mm Thick, 8.5 mm Wide
