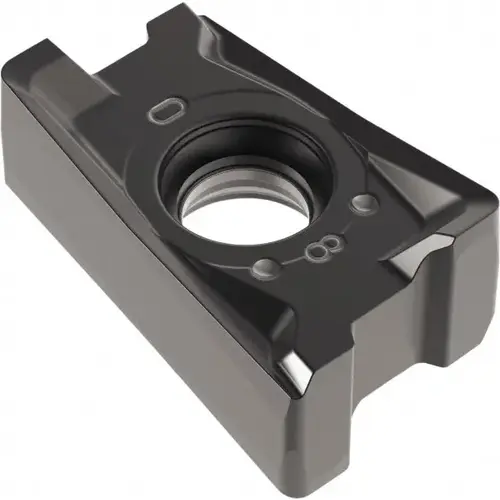

Milling Insert: KCPK30, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 6131505Click To Copy Milling Insert: KCPK30, Solid Carbide TiN

Item #: 6131505 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$31.74

/each
SAVE UP TO 3.17

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 110 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

0.80

Vendor Drop Ship

N

Iso Code

LNPU110408SRGE

Width (Decimal Inch - 4 Decimals)

0.2598

Thickness (Decimal Inch - 4 Decimals)

0.1875

Relief Angle

0.00

Cutting Edge Style

Chamfered

Cutter Series Compatibility

Mill 4-11

Rake

Positive

Material Grade

C1

Length (Inch)

31/64

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Insert Holding Method

Screw

Coating/Finish

TiN

Width (mm - 2 Decimals)

6.50

UNSPSC Code

23291601

Corner Radius (Inch)

1/32

Insert Style

LNPU

Manufacturers Catalog Number

LNPU110408SRGE

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Manufacturer Grade

KCPK30

Length (Decimal Inch - 4 Decimals)

0.4760

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2598

Coating Process

CVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0310

Hole Diameter (Decimal Inch)

0.1339

Chip Breaker

GE

Length Range (Decimal Inch)

0.4500 to 0.5000

Multi-use Tool

Yes

Coating Classification

CVD

Insert Size Code

432

Thickness (Inch)

3/16

Included Angle Degree

90

Material Application

Steel

Number of Cutting Edges

4

ANSI Code

LNPU432SRGE

Series

LNPU

Hole Diameter (Mm) ( - 0 Decimals)

0.13

Insert Shape

Rectangle

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: KCPK30, Solid Carbide TiN, TiCN, Al2O3 Coated, 3/16" Thick, 6.5 mm Wide
