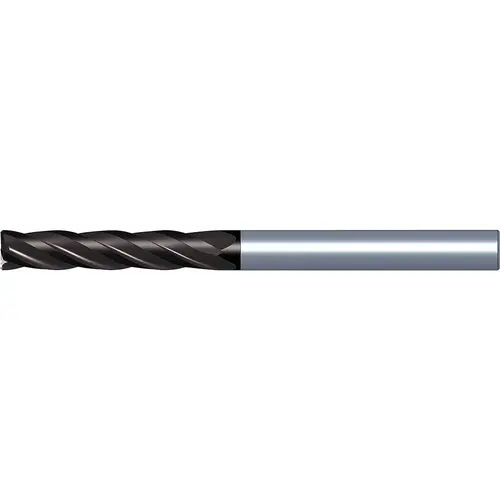

Corner Chamfer End Mill: 1" Dia, 4" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide TiN/TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5824418Click To Copy Corner Chamfer End Mill: 1" Dia, 4" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide TiN/TiAlN

Item #: 5824418 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$679.91

/each
SAVE UP TO 67.99

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Helical

Shank Type

Straight-Cylindrical

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Regular

Cutting Direction

Right Hand

Series

4CH

Variable Helix

No

Coating/Finish

TiN/TiAlN

Coolant Through

No

Length Of Cut (Decimal Inch - 4 Decimals)

4.0000

Length of Cut (Inch)

4

Manufacturers Catalog Number

4CH1000IX400A

Material Grade

KC633M

Overall Length (Decimal Inch)

7.0000

Overall Length (Inch)

7

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

1.0000

Shank Diameter (Inch)

1

UNSPSC Code

27112803

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

1.0000

Mill Diameter (Inch)

1

Single Or Double End

Single

Variable Index

No

Reach Length (Inch)

4

Mill Diameter Tolerance

-0.040 to -0.073 mm

Chamfer Angle

45

Reach Length (Decimal Inch)

4.0000

Chamfer Length (Decimal Inch)

0.0200

Chamfer Width (Decimal Inch)

0.0200

Shank Diameter Tolerance

+0.000 to -0.013 mm

Proprietary Coating Designation

KC633M

Product Overview
Corner Chamfer End Mill: 1" Dia, 4" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide 7" OAL, 1" Shank Dia, 30 deg Helix, TiN/TiAlN Coated, Centercutting, Series 4CH
