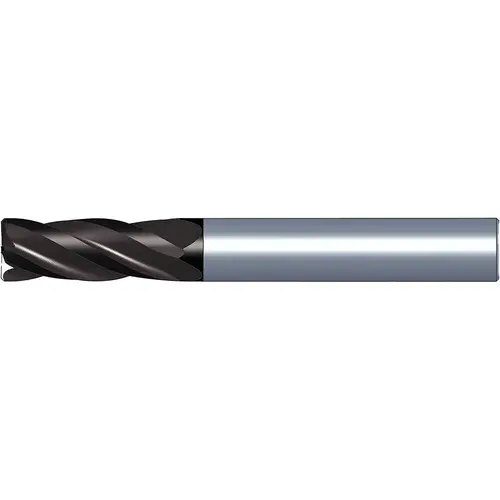

Kennametal 5824183Click To Copy Corner Chamfer End Mill: 8 mm Dia, 19 mm LOC, 4 Flutes, 0.2 mm Chamfer Width, Solid Carbide TiN
Item #: 5824183 by Kennametal
See reviewsSee reviews
In Stock
$71.41
/eachSAVE UP TO 7.14
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Helical
Shank Type
Straight-Cylindrical
Overall Length (mm)
62.99
Helix Angle
30
Number of Flutes
4
Pitch
Normal
Chipbreaker
No
Length Type
Regular
Cutting Direction
Right Hand
Series
4CH
Variable Helix
No
Coating/Finish
TiN
Coolant Through
No
Length Of Cut (Decimal Inch - 4 Decimals)
0.7480
Manufacturers Catalog Number
4CH0800DL019A
Material Grade
KC633M
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (mm)
8.00
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Helix Style
Medium
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.3150
Single Or Double End
Single
Variable Index
No
Length of Cut (mm)
19.00
Reach Length (mm)
19.00
Mill Diameter Tolerance
-0.025 to -0.047 mm
Chamfer Angle
45
Mill Diameter (mm)
8.00
Chamfer Width (mm)
0.20
Chamfer Width (Decimal Inch)
0.0079
Shank Diameter Tolerance
+0.000 to -0.009 mm
Chamfer Length (mm)
0.20
Product Overview
Corner Chamfer End Mill: 8 mm Dia, 19 mm LOC, 4 Flutes, 0.2 mm Chamfer Width, Solid Carbide 63 mm OAL, 8 mm Shank Dia, 30 degree Helix, TiAlN Coated, Centercutting
