Corner Chamfer End Mill: 3/4" Dia, 1" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

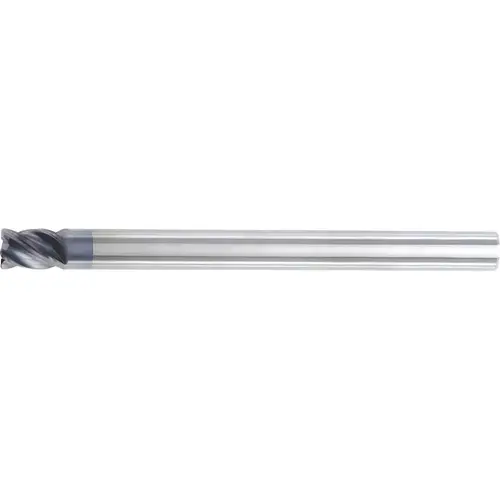

Kennametal 4072209Click To Copy Corner Chamfer End Mill: 3/4" Dia, 1" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide AlTiN

Item #: 4072209 by Kennametal

See reviewsSee reviews
See reviews summary

$385.75

/each
SAVE UP TO 38.58

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Variable

Shank Type

Straight-Cylindrical

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Extended

Cutting Direction

Right Hand

Series

HPRS

Variable Helix

No

Coating/Finish

AlTiN

Coolant Through

No

Length Of Cut (Decimal Inch - 4 Decimals)

1.0000

Length of Cut (Inch)

1

Manufacturers Catalog Number

HPRSHV750S4500CH

Material Grade

KCPM15

Overall Length (Decimal Inch)

5.0000

Overall Length (Inch)

5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.7500

Shank Diameter (Inch)

3/4

UNSPSC Code

27112803

Vendor Drop Ship

Y

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.7500

Mill Diameter (Inch)

3/4

Single Or Double End

Single

Variable Index

Yes

Reach Length (Inch)

1

Mill Diameter Tolerance

+0.0000 to -0.0020 in

Chamfer Angle

45

Reach Length (Decimal Inch)

1.0000

Chamfer Length (Decimal Inch)

0.0200

Chamfer Width (Decimal Inch)

0.0200

Shank Diameter Tolerance

+0.00000 to -0.00051 in

Product Overview
Corner Chamfer End Mill: 3/4" Dia, 1" LOC, 4 Flute, 0.0200" Chamfer Width, Solid Carbide 5" OAL, 3/4" Shank Dia, AlTiN Coated, Centercutting, Series HPRS
