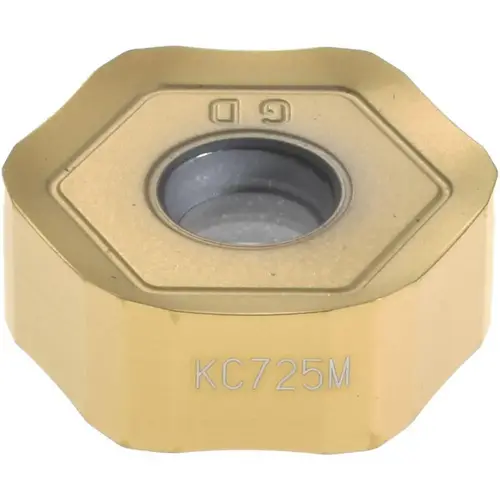

Kennametal 3331176 Milling Insert: HNGJ0905ANSNGD, KC725M, Solid Carbide TiAlN

Item #: 3331176 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$55.23

/each
SAVE UP TO 5.52

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 857 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

HNGJ0905ANSNGD

Corner Radius (mm)

1.20

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Length Range (Decimal Inch)

0.6000 to 0.6500

Cutter Series Compatibility

Dodeka

Single or Double Sided Insert

Double

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Manufacturer Grade

KC725M

Inscribed Circle (Inch)

5/8

Included Angle Degree

120

Relief Angle

0.00

Insert Size Code

535

Insert Style

HNGJ

Chip Breaker

GD

Insert Shape

Hexagon

Corner Radius (Inch)

3/64

Inscribed Circle (Decimal Inch)

0.6250

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.5000

Insert Holding Method

Screw

Coating Classification

PVD

Width (Inch)

5/8

Width (Decimal Inch - 4 Decimals)

0.6250

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Inch)

7/32

Thickness (Decimal Inch - 4 Decimals)

0.2190

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

HNGJ0905ANSNGD

Length (Inch)

5/8

Length (Decimal Inch - 4 Decimals)

0.6250

Corner Radius (Decimal Inch)

0.0470

Coating/Finish

TiAlN

Coating Process

PVD

Series

HNGJ

Insert Material

Solid Carbide

Standards

ANSI

Number of Cutting Edges

12

ANSI Code

HNGJ535ANSNGD

Material Application

Steel

Cutting Edge Style

Chamfered

Product Overview
Milling Insert: HNGJ0905ANSNGD, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.219" Thick, 5/8" Wide
