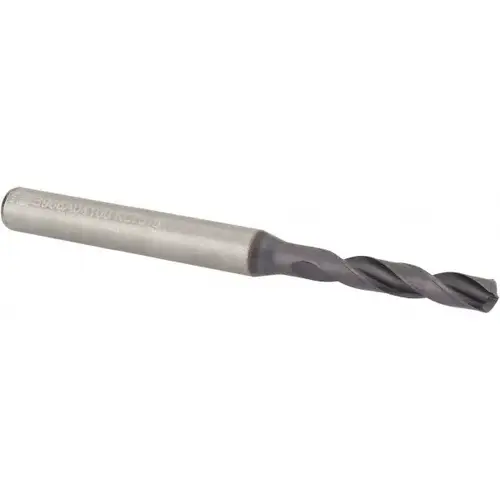

Screw Machine Length Drill Bit: 4.10 mm Dia, 140 deg Point, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 2425113Click To Copy Screw Machine Length Drill Bit: 4.10 mm Dia, 140 deg Point, Solid Carbide TiAlN

Item #: 2425113 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$90.81

/each
SAVE UP TO 9.08

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

66.00

Number of Flutes

2

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

B966

Point Type

Standard

Spiral Type

Regular

Coating/Finish

TiAlN

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.1614

Drill Bit Size (mm)

4.10

Drill Bit Size Range (Decimal Inch)

0.1500 to 0.2000

Flute Length (mm)

24.00

Overall Length (Decimal Inch)

2.5984

Primary Workpiece Material

Cast Iron

Shank Diameter (Decimal Inch)

0.2362

Shank Diameter (mm)

6.00

Shank Length (Decimal Inch)

1.4173

Shank Length (mm)

36.00

UNSPSC Code

23241635

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Bit Size Range (mm)

3.50 - 5.00

Drill Point Angle

140

Maximum Drilling Depth (mm)

17.00

Proprietary Coating/Finish

TiAlN

Specification Designation

DIN

Specification Number

DIN 6537K

Web Configuration

Parallel

Web Thinning

Web-Thinned

Drill Point Length (mm)

0.70

Product Overview
Screw Machine Length Drill Bit: 4.10 mm Dia, 140 deg Point, Solid Carbide Multilayer TiAlN Coated, 66.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series B966
