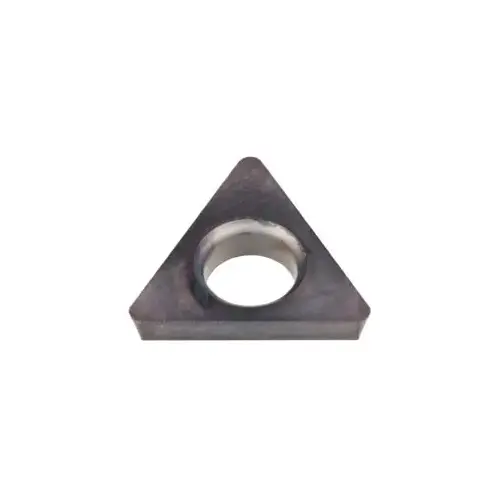

Turning Insert: TDHB1280751 KC5025, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1937539-XCP5 Turning Insert: TDHB1280751 KC5025, Solid Carbide - pack of 5

Item #: 1937539-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$114.83

/package
SAVE UP TO 11.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

7.40

Number of Cutting Edges

3

Standards

ANSI

Chipbreaker

Flat Top

Included Angle

60

Insert Material

Carbide

Series

Screw-On

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0156

Length (Decimal Inch - 4 Decimals)

0.2772

Manufacturers Catalog Number

1937539

Material Grade

C2

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2772

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0492

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.1600

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Rake Angle

0

Secondary Workpiece Material Code

S

Insert Style

TDHB

Insert Size Code

1280751

Hole Diameter (Decimal Inch)

0.0950

Relief Angle

15

Hole Diameter (Mm) ( - 0 Decimals)

2.39

Maximum Depth of Cut (mm)

1.25

Manufacturer Grade

KC5025

Product Overview
Turning Insert: TDHB1280751 KC5025, Solid Carbide TiAlN Coated, Neutral, 7.04 mm Long, 0.1598" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series Screw-On
