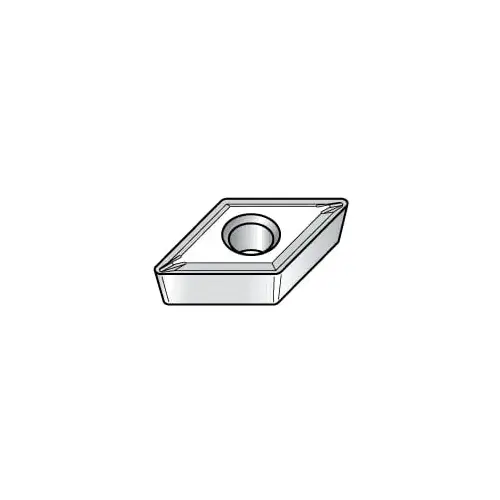

Turning Insert: DCMT32505LF KT315, Cermet TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1869974Click To Copy Turning Insert: DCMT32505LF KT315, Cermet TiN

Item #: 1869974 by Kennametal

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$44.66

/each
SAVE UP TO 4.47

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Cermet

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

1869974

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.9156

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

11.63

Corner Radius (Inch)

1/128

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

C

Rake Angle

5

Full Radius

No

Insert Shape Code

D

Chip Breaker

LF

Insert Style

DCMT

Insert Size Code

32505

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KT315

ISO Size Code

11T302

Grade Characteristics

Steel (P) - High Wear-Resistance

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

32505

ISO Insert Code

DCMT11T302

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

DCMT32505

Product Overview
Turning Insert: DCMT32505LF KT315, Cermet TiN, TiCN & TiN Coated, Neutral, 11.63 mm Long, 3/8" Inscribed Circle, 0.0079" Corner Radius, 55 degree Diamond, Series Screw-On
