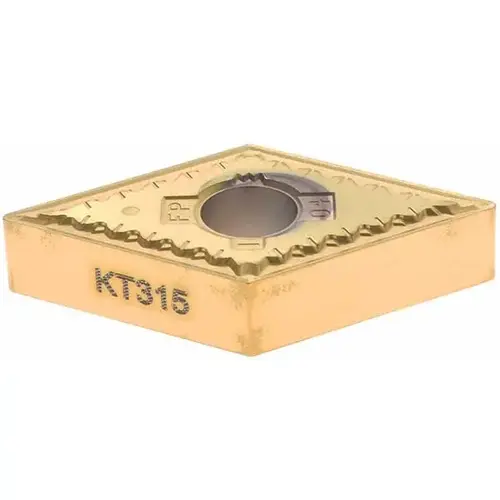

Turning Insert: DNMG431FP KT315, Cermet TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1819335Click To Copy Turning Insert: DNMG431FP KT315, Cermet TiN

Item #: 1819335 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$44.22

/each
SAVE UP TO 4.42

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

1.2208

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

15.50

Corner Radius (Inch)

1/64

Insert Shape

D - Diamond (Rhombic) 55-Deg

Clearance Code

N

Rake Angle

15

Full Radius

No

Insert Shape Code

D

Chip Breaker

FP

Insert Style

DNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KT315

ISO Size Code

150404

Grade Characteristics

Steel (P) - High Wear-Resistance

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

431

ISO Insert Code

DNMG150404

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

DNMG431

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55

Insert Material

Cermet

Series

KENLOC

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

1819335

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

PVD

Product Overview
Turning Insert: DNMG431FP KT315, Cermet TiN, TiCN & TiN Coated, Neutral, 15.5 mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series KENLOC
