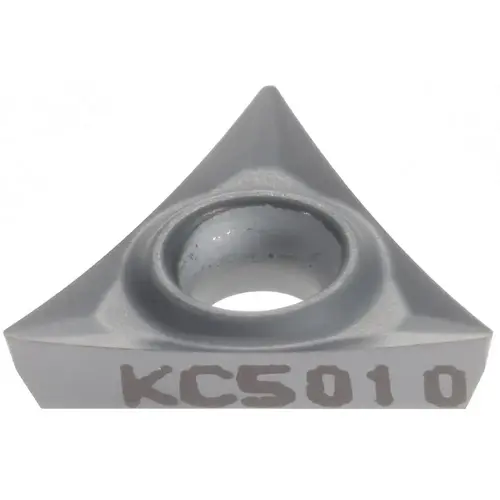

Turning Insert: TPGT21505HP KC5010, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1310793-XCP5Click To Copy Turning Insert: TPGT21505HP KC5010, Solid Carbide - pack of 5

Item #: 1310793-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$142.13

/package
SAVE UP TO 14.21

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 74 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

1310793

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4331

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4331

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.00

Corner Radius (Inch)

1/128

Insert Shape

T - Triangle

Clearance Code

P

Rake Angle

15

Full Radius

No

Insert Shape Code

T

Chip Breaker

HP

Secondary Workpiece Material Code

N

Insert Style

TPGT

Insert Size Code

21505

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Finishing

Manufacturer Grade

KC5010

ISO Size Code

110202

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.4000 - 0.5000

ANSI Size Code

21505

ISO Insert Code

TPGT110202

ANSI Insert Code

TPGT21505

Product Overview
Turning Insert: TPGT21505HP KC5010, Solid Carbide TiAlN Coated, Neutral, 11 mm Long, 1/4" Inscribed Circle, 0.008" Corner Radius, 60 degree Triangle, Series Screw-On
