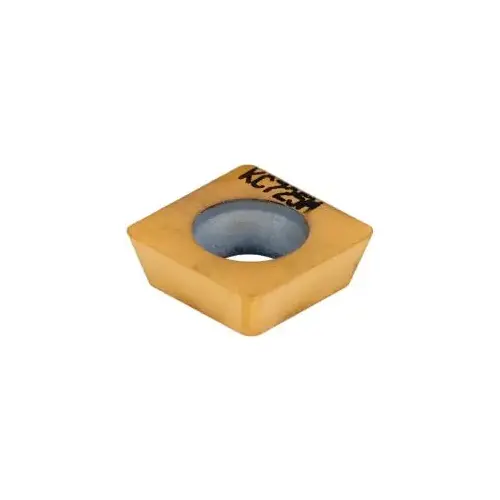

Milling Insert: SDCW090308, KC725M, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1180959-XCP5Click To Copy Milling Insert: SDCW090308, KC725M, Solid Carbide - pack of 5

Item #: 1180959-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$202.65

/package
SAVE UP TO 20.27

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Steel

Insert Material

Solid Carbide

Series

SDCW

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

SDCW090308

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1252

Thickness (Inch)

1/8

UNSPSC Code

23291601

Vendor Drop Ship

N

Coating Classification

PVD

Insert Holding Method

Screw

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3752

Corner Radius (Inch)

1/32

Insert Shape

Square

Insert Style

SDCW

Insert Size Code

322

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

15.00

Included Angle Degree

90

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

0.17

Manufacturer Grade

KC725M

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Corner Radius (mm)

0.80

Iso Code

SDCW090308

Product Overview
Milling Insert: SDCW090308, KC725M, Solid Carbide TiN, TiCN, TiN Coated, 0.1252" Thick
