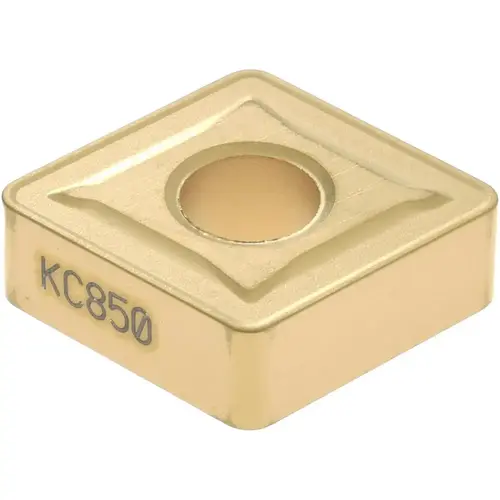

Turning Insert: CNMG433 KC850, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 1160180-XCP5Click To Copy Turning Insert: CNMG433 KC850, Solid Carbide - pack of 5

Item #: 1160180-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$121.54

/package
SAVE UP TO 12.15

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

1160180

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0492

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

Common

Secondary Workpiece Material Code

K

Insert Style

CNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

1.25

Chip Breaker Operation

Medium Machining

Manufacturer Grade

KC850

ISO Size Code

120412

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

433

ISO Insert Code

CNMG120412

Proprietary Coating Designation

Multilayer Coating

ANSI Insert Code

CNMG433

Product Overview
Turning Insert: CNMG433 KC850, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 12.9 mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series KENLOC
