Johnson Hardware 100FD362 Panel Hardware Set, 36 in L Track, Top Mounting, For: 75 lb Bi-Fold Door
Item #: 100FD362 by L.E. Johnson Products, Inc
UPC #: 086073103626
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bi-folding door hardware sets for standard panel or opening widths
- Track can be cut down to accommodate narrower panel or openings
- Nylon encapsulated sealed ball bearing wheel
- 12 to 14 ga steel components with zinc trivalent plated
- 6063T6 extruded aluminum I-Beam track with mill-aluminum finish
Panel Thickness
1-1/8 to 1-3/4"
Material
Aluminum
Wheel Diameter
1"
Track Length
36"
Screws Included
Yes
Hardware Included
Yes
Maximum panel width
18"
Commercial or Residential
Commercial and Residential
Defective Code
C
Each Weight
15.600 LB
Hazardous Material
No
Maximum Weight Per Door
75 lb.
Number of Panel
2 panels
Returnable
Yes
Sub Brand
100FD
Velocity
N
Product Type
Bi-fold Hardware Kit
Mounting
Top
Mounting Type
Top
Type
Commercial-Grade
Application
For commercial and residential applications
Door Thickness
1-1/8 to 1-3/4"
Nomenclature
100FD362 BI-FOLD DR HDWR 36IN
Product Overview
BI-FOLD DR 2-PNL HDWR SET 36IN
Specifications:
Specifications:

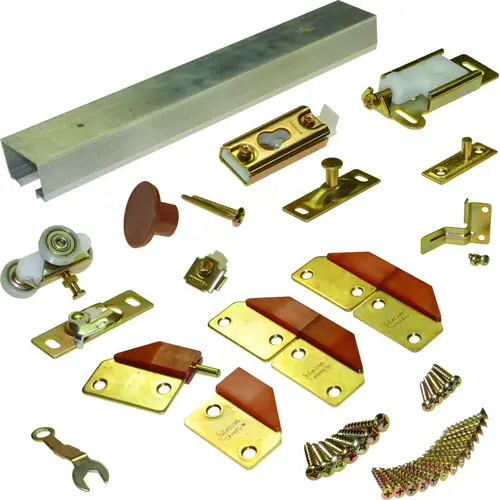

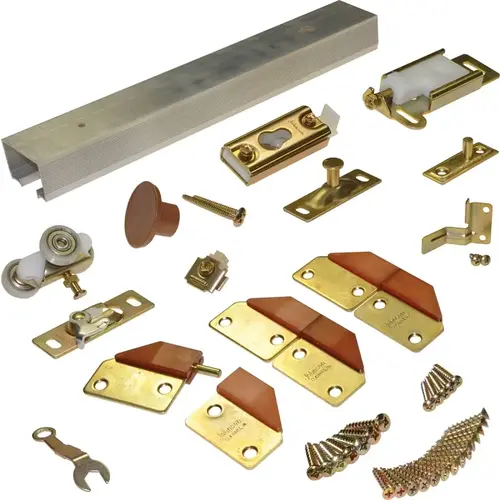

Includes: (1)100 Track (1) 1155 Track Stop (1) 107 PIV-Set (1) 1011 PIV Socket (1) 1706 Bot PIV (3) 1606 Hinges (1) 33 Knob (1) 1125 Hanger (1) 1712 Wrench and (1) or (2) 1808 Aligner
Suitable for: 75 lb Bi-Fold Door
For door panels 1-1/8 to 1-3/4 in thick,18 in x 108 in W, weighing up to 75 pounds per panel. Set contains (1) 100 track length, (1) 107 top pivot set, (2) 1125 door hangers, (2) 1155 track stop, (6) 1606 hinges, (2) 1706 bottom pivot, (1) 1011 pivot bracket, (5) 1808 door aligner, (1) 33 door knob and (1) 1712 adjustment wrench.
