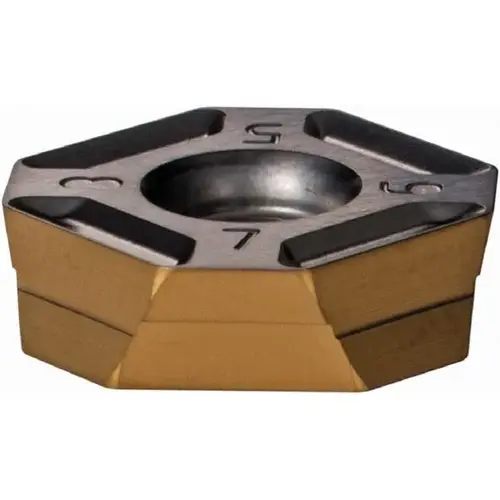

Milling Insert: IQ845 SYHU 0704ADN, IC830, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5607373Click To Copy Milling Insert: IQ845 SYHU 0704ADN, IC830, Solid Carbide AlTiN

Item #: 5607373 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$49.91

/each
SAVE UP TO 4.99

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 201 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

IQ845 SYHU 0704ADN IC830

Number of Cutting Edges

8

Standards

ANSI

Insert Material

Solid Carbide

Series

DOVEIQMILL

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.5433

Manufacturers Catalog Number

IQ845 SYHU 0704ADN IC830

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1650

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5433

Coating Classification

Sumotec PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1810

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5433

Corner Radius (Inch)

1/32

Insert Shape

Square

Chip Breaker

AND

Secondary Workpiece Material Code

S

Insert Style

SYHU

Insert Size Code

0704

Relief Angle

0

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.5118

Maximum Depth of Cut (mm)

4.60

Manufacturer Grade

IC830

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

IQ845

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Corner Radius (mm)

0.79

Iso Code

IQ845 SYHU 0704ADN

Product Overview
Milling Insert: IQ845 SYHU 0704ADN, IC830, Solid Carbide Coated, 0.165" Thick
