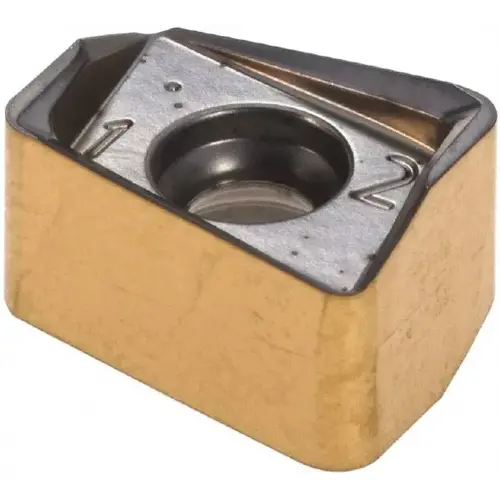

Milling Insert: H490 ANKX 120516PNTR, IC830, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5606009 Milling Insert: H490 ANKX 120516PNTR, IC830, Solid Carbide AlTiN

Item #: 5606009 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$38.25

/each
SAVE UP TO 3.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Cutting Edge Effective Length (Decimal Inch)

0.4330

Manufacturer Grade

IC830

Length (Decimal Inch - 4 Decimals)

0.5394

Secondary Workpiece Material Code

S

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3940

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0630

Chip Breaker

PNTR

Length Range (Decimal Inch)

0.5000 to 0.6000

Multi-use Tool

Yes

Coating Classification

Sumotec PVD

Insert Size Code

120516

Included Angle Degree

85

Material Application

Steel

Number of Cutting Edges

4

ANSI Code

H490 ANKX 120516PNTR IC830

Series

HELIDO

Insert Shape

Parallelogram

Single or Double Sided Insert

Double

Primary Workpiece Material Code

P

Manufacturers Catalog Number

H490 ANKX 120516PNTR IC830

Insert Style

ANKX

Coating/Finish

AlTiN

Insert Holding Method

Screw

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Rake

Negative

Cutter Series Compatibility

H490 ANK12

Cutting Edge Style

Helical

Relief Angle

0

Thickness (Decimal Inch - 4 Decimals)

0.3390

Width (Decimal Inch - 4 Decimals)

0.3940

Iso Code

H490 ANKX 120516PNTR

Maximum Depth of Cut (Decimal Inch)

0.4330

Vendor Drop Ship

N

Corner Radius (mm)

1.60

Insert Material

Solid Carbide

Product Overview
Milling Insert: H490 ANKX 120516PNTR, IC830, Solid Carbide Coated, 0.339" Thick, 0.394" Wide
