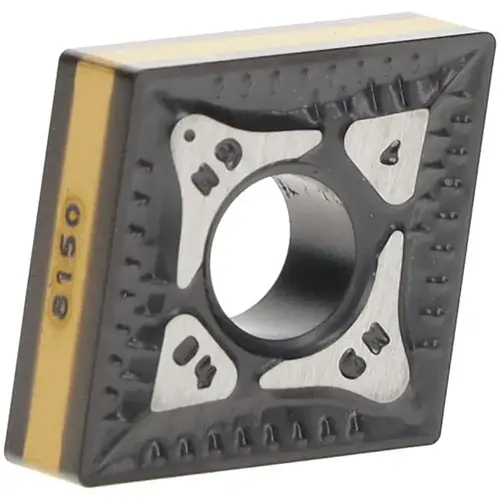

Turning Insert: CNMG 431-GN IC8150, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5507843-XCP10Click To Copy Turning Insert: CNMG 431-GN IC8150, Solid Carbide - pack of 10

Item #: 5507843-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$256.90

/package
SAVE UP TO 25.69

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

CNMG 431-GN

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1870

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1570

Multi-use Tool

Yes

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

GN

Insert Style

CNMG

Insert Size Code

431

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

3.99

Manufacturer Grade

IC8150

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

CNMG 431-GN

Product Overview
Turning Insert: CNMG 431-GN IC8150, Solid Carbide TiCN, Al2O3 & TiN Coated, 12.9 mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
