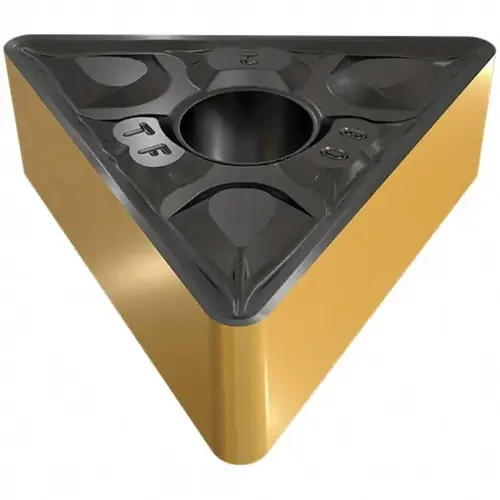

Iscar 5507282Click To Copy Turning Insert: TNMG 331-TF IC9250, Solid Carbide TiCN
Item #: 5507282 by Iscar
See reviewsSee reviews
In Stock
$19.04
/eachSAVE UP TO 1.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ISO 13399
Included Angle
60.0
Insert Material
Solid Carbide
Series
Isoturn
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0160
Manufacturers Catalog Number
TNMG 331-TF
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6500
Insert Thickness (Decimal Inch)
0.1870
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.1180
Multi-use Tool
Yes
Rake
Positive
Inscribed Circle (Decimal Inch)
0.3750
Insert Length (mm)
16.51
Corner Radius (Inch)
1/64
Insert Shape
Triangle
Clearance Code
N
Insert Shape Code
T
Chip Breaker
TF
Insert Style
TNMG
Insert Size Code
331
Tolerance Code
M
Relief Angle
0
Inscribed Circle (Inch)
3/8
Maximum Depth of Cut (mm)
3.00
Manufacturer Grade
IC9250
Length Range (Decimal Inch)
0.6500 - 0.7000
Corner Radius (mm)
0.02
Iso Code
TNMG 331-TF
Product Overview
Turning Insert: TNMG 331-TF IC9250, Solid Carbide TiCN & Al2O3 Coated, 16.51 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series Isoturn
