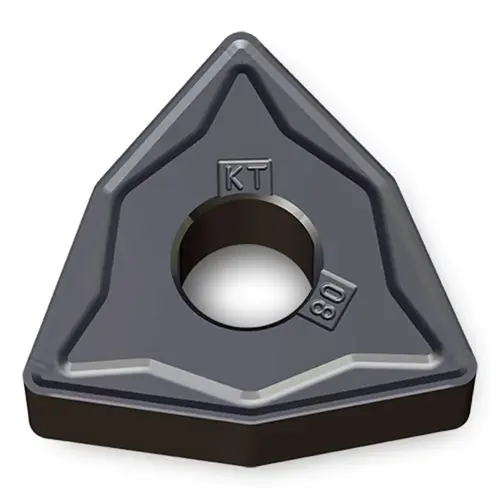

Ingersoll Cutting Tools 6186055 Turning Insert: WNMG433KT TT7025, Solid Carbide Al2O3

Item #: 6186055 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$24.83

/each
SAVE UP TO 2.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

1

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1870

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.2170

Iso Code

WNMG080412KT TT7025

Width (Decimal Inch - 4 Decimals)

1.0000

Relief Angle

0

Clearance Code

N

Rake

Negative

Insert Length (Decimal Inch)

0.3430

Insert Holding Method

Clamp

Coating/Finish

Al2O3

UNSPSC Code

23242105

Insert Style

WNMG

Insert Hand

Neutral

Manufacturer Grade

TT7025

Inscribed Circle (Inch)

1/2

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

CVD

Primary Workpiece Material

Cast Iron

Insert Shape Code

W

Corner Radius (Decimal Inch)

0.0470

Chip Breaker

KT

Tolerance Code

M

Wiper Edge

No

Insert Size Code

433

Included Angle

80

Number of Cutting Edges

6

Series

WNMG

Insert Shape

Trigon

Primary Workpiece Material Code

K

Product Overview
Turning Insert: WNMG433KT TT7025, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 0.343" Long, 1/2" Inscribed Circle, 0.047" Corner Radius, 80 degree Trigon, Series WNMG
