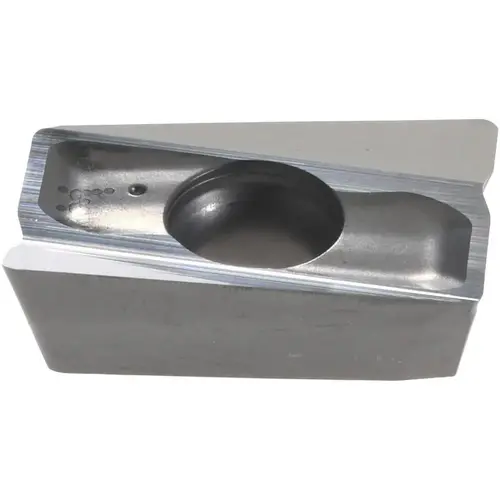

Milling Insert: APCT160408FR-HS, IN30M, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 5802407-XCP10Click To Copy Milling Insert: APCT160408FR-HS, IN30M, Solid Carbide - pack of 10

Item #: 5802407-XCP10 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$486.88

/package
SAVE UP TO 48.69

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

3/8

Insert Material

Solid Carbide

Vendor Drop Ship

N

Iso Code

APCT160408FR-HS

Width (Decimal Inch - 4 Decimals)

0.3750

Thickness (Decimal Inch - 4 Decimals)

0.2100

Relief Angle

11.00

Cutting Edge Style

Sharp

Cutter Series Compatibility

12J1B

Rake

Positive

Material Grade

Coarse Grain

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Insert Holding Method

Screw

Coating/Finish

Bright/Uncoated

UNSPSC Code

23291601

Corner Radius (Inch)

1/32

Insert Style

APLS

Manufacturers Catalog Number

5802407

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Cutting Edge Effective Length (Decimal Inch)

0.6000

Manufacturer Grade

IN30M

Inscribed Circle (Inch)

3/8

Length (Decimal Inch - 4 Decimals)

0.6370

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

Uncoated

Primary Workpiece Material

Non-Ferrous Metal

Corner Radius (Decimal Inch)

0.0310

Chip Breaker

None

Length Range (Decimal Inch)

0.6000 to 0.6500

Multi-use Tool

No

Coating Classification

Uncoated

Insert Size Code

53

Included Angle Degree

85

Material Application

Non-Ferrous Metal

Number of Cutting Edges

2

ANSI Code

APLS53R01 S IN30M

Series

APLS

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

N

Product Overview
Milling Insert: APCT160408FR-HS, IN30M, Solid Carbide Uncoated, 0.201" Thick, 0.365" Wide
