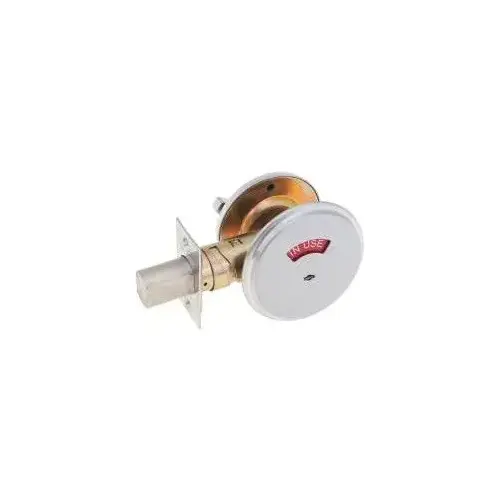

Falcon D271 626 Lock D200 Series Grade 2 Non-Handed Medium Duty Deadlock Chasis Thumbturn Indicator Keyless Satin Chrome Finish
Item #: D271 626 by Falcon
UPC #: 043156147489
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Supplemental Protection Against Break-ins
- Door Thickness: 1 3/8” to 1 7/8”. For thicker doors, available up to 2 1/4”.
- Backsets: 2 3/8” to 2 3/4” adjustable deadbolt.
- Integrated Anti-pry Shield Behind the Cylinder Assembly for Added Security and Quicker Installation
- Integrated Trim Design Requires Fewer Pieces Out of the Box and Improves Installation Time
- Attachment: Locks are solidly attached to the door by 1/4” heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.
- Handing: Non-handed. May be used in right hand or left hand doors swinging in or out.
- Tapered Front Resists Wrenching
- Limited 10 Year Warranty
- Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Exposed Trim: Wrought brass or bronze reinforced with steel insert.
- Strikes: 2 3/4” x 1 1/8” lipless standard. ANSI 4 7/8” x 1 1/4” lipless, 2 1/4” full lip strikes, a 2 3/4” x 1 1/8” T-strike or a security strike are available. Consult Options and Accessories section.
- Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.
- ANSI/BHMA Standard: A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.
Finish
Satin Chrome
Function
Indicator
Series
D200 Series
Material
Brass
ANSI Certification
A156.2
BHMA Certification
Grade 2
Product Class
Commercial
Approved for Commercial Use
Yes
Latch Faceplate
Square Corner
Theme
Modern
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Configuration
Deadbolt
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8"
ADA
Yes
Package Volume
0
Grade
ANSI/BHMA Grade 2
Package Qty
1
Color Code
626/US26D
Base Material
Brass or Bronze
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Finish Description
Satin Chrome
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Strike Size
2-3/4" x 1-1/8"
Interior Lock Type
Thumbturn
Exterior Lock Type
Occupancy Indicator
Manufacturer Parent
Allegion
Sub-Series
CL_Deadbolt_Locks_falcon_6
ADA Compliant
No
Front Size
1-1/8" x 2-1/4"
Deadbolt Material
Hardened Steel
Function Family
Occupancy Indicator Deadbolt
Standards
ANSI/BHMA A156.5
Features
Zinc Bolt With Anti-Saw Pin; Supplemental Protection Against Break-In
Strike Type
Lipless Strike
Deadbolt Type
Deadlocking
Warranty
10 Year
Deadbolt Housing Size
1/4 Inch
Finish Family
Satin Chrome
Alternate Part Number-1
158433
Item Weight
1.39 lbs
Package Height
5"
Package Length
9.5"
Package Width
6.5"
