Imperial USA ED-VR331-AL 300 Series Aluminum Grade 2 Commercial Surface Vertical Rod Crash Bar Exit Device

The ED-301 “crash bar” style exit device are suitable for narrow, medium, or wide stile aluminum and hollow metal doors. It is designed for all heavy duty commercial and industrial applications. It is non-handed with a contoured cross bar that will fit doors up to 36" and can be field measured to accommodate narrow doors.

Specifications ED-301

• Bar length 30", suitable for 36" wide door
•ANSI A156.3 Grade 2
•Contoured aluminum
•Stainless Steel springs
•Latch Case: 1 1/4" w x 7 1/4" l with 1/2" throw Backset: 1 5/32"
•Strike: rim mounted roller strike with shim Projection: 4 1/2"
•Stile: 2" minimum
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36" and shoulder mounting studs with set screws.
•Thumbturn dogging
•Warranty: 1 year
•Finishes: AL, DU

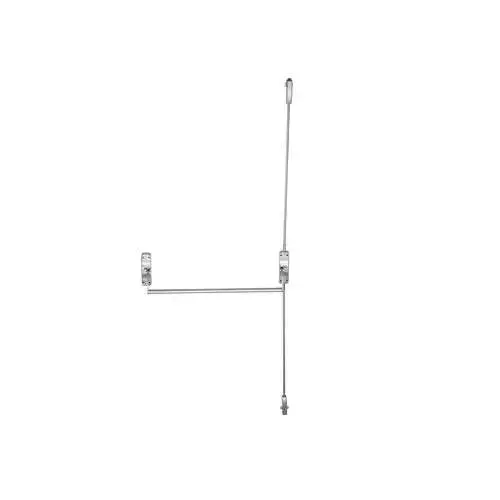

The ED-VR331 panic devices blend the utility of a vertical rod application with the appearance of a traditional panic device. it is non-handed and reversible with a contoured cross bar that will fit doors up to 36".

Specifications ED-VR331
•ANSI A156.3 Grade 2
•Contoured aluminum
•Interlocking top and pullman bottom latch
•Non handed
•Door thickness: 1 3/4" standard
•Door width: up to 36"
•Door height: up to 7'
•Fasteners: furnished with sheet metal, machine screws and shoulder mounting studs with set screws. 12" Extension Rod available
•Warranty: 1 year
•Finishes: AL, DU
